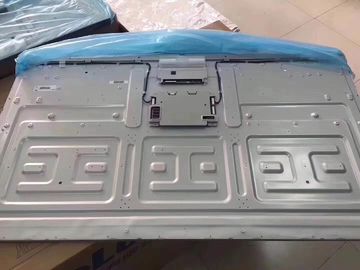

Innolux 50 Inch Large LCD Display Screen Custom Design 1.07 Billion Colours

Innolux 50Inch Original & custom lcd display V500DJ2-KS5 3840*2160 Pixels FHD 350CD 51P large lcd display 1.07B colours

Brand

Innolux

Model

V500DJ2-KS5 Rev.L1

Diagonal Size

50 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

3840(RGB)×2160 [UHD]

Configuration

RGB Vertical Stripe

Active Area

1095.84(H)×616.41(V) mm

Outline Dim.

1115.04(H)×638.41(V) ×30.9(D) mm

Bezel Area

1103.0(H)×622.41(V) mm

Treatment

Antiglare (Haze 1%)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

4000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

9.5 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

Super MVA, Normally Black, Transmissive

Support Color

1.07B

Light Source

WLED , 30K hours , With LED Driver

Weight

12.3Kgs (Typ.)

Designed For

Frame Rate

120Hz

Touch Panel

Without

Interface Type

51 pins V-by-One 8 lane , Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

•
• All Origianl product will be send to customer after full test one by one.
