LG 23.8 Inch PC LCD Module LM238WF5 SSA1 FHD 250 cd/m² IPS Display Panel for Desktop PC

LG 23.8 Inch PC LCD Module LM238WF5 SSA1 FHD 250 cd/m² IPS Display Panel for Desktop PC

Brand Name:	LG
Model Number:	LM238WF5-SSA1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

250CCD/M2

Connector:

30P

Color:

16.7M

Contrast Ratio:

1000:!

Working Life:

30K Hours

Touch Panel:

Without

Resolution:

1920*1080pixels

Packaging Details:

Industrial packing

Highlight:

lcd touch screen module

lcd display panel

Product Description

LG 23.8 Inch PC LCD Module LM238WF5 SSA1

High-quality FHD LCD module designed for W15C Desktop PC applications, featuring IPS technology and reliable performance.

Technical Specifications

Specification	Details
Panel Brand	LG Display
Panel Model	LM238WF5-SSA1
Panel Size	23.8 inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080, FHD
Pixel Format	RGB Vertical Stripe
Display Area	527.04(W)*296.46(H) mm
Outline Size	535.24(W)313.18(H)12.76(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View	Symmetry
Response Time	14ms (Typ.)(G to G)
Display Colors	16.7M 72% (CIE1931)
Lamp Type	WLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	In-Cell Touch
Panel Weight	1.92/2.01Kgs (Typ./Max.)
Signal Interface	LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

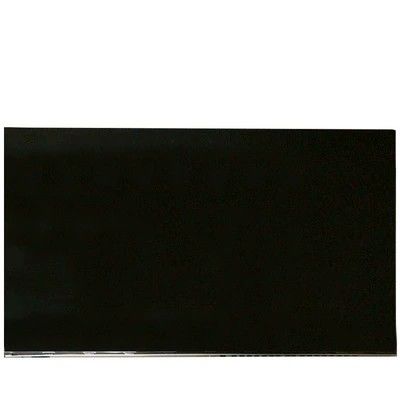

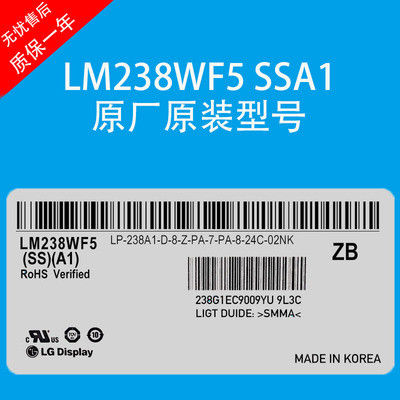

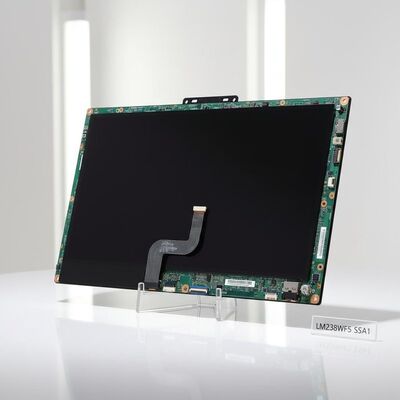

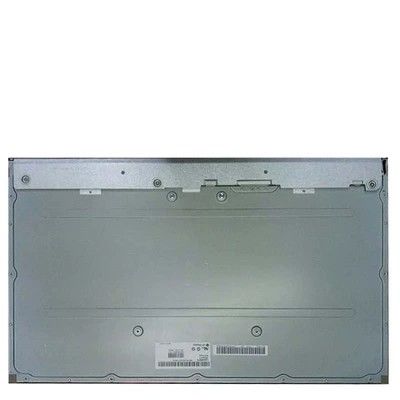

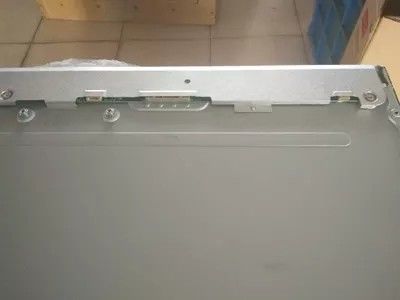

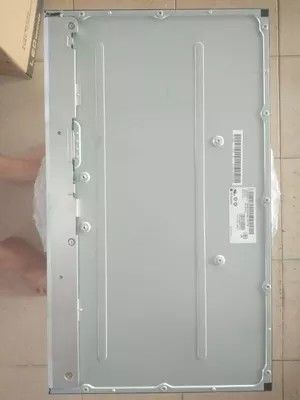

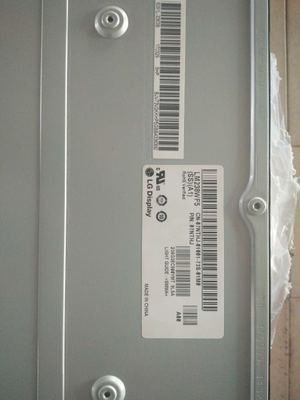

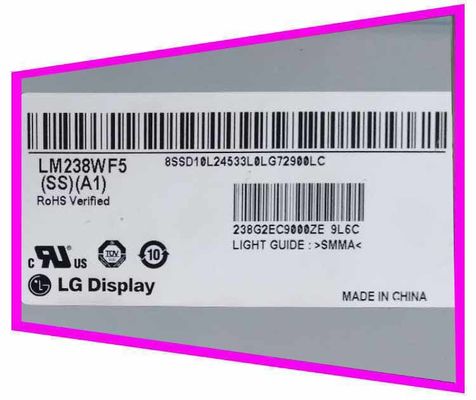

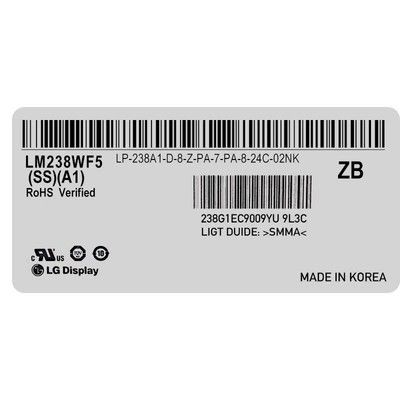

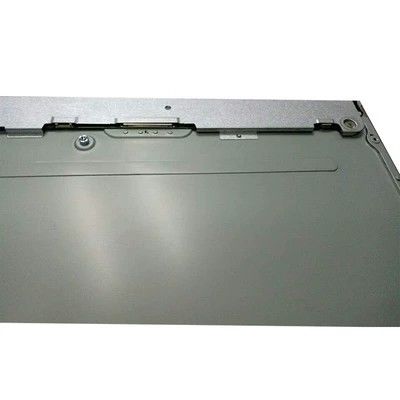

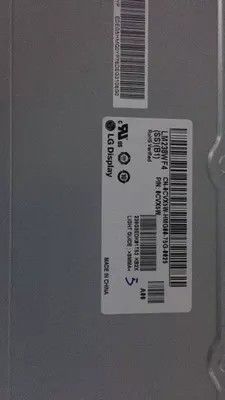

Product Images

Quality Assurance: All original products undergo comprehensive testing before shipment to ensure optimal performance and reliability.

Detailed Documentation: Complete specification details available upon request. Please contact us for technical datasheets and additional product information.
