BOE 23.8 Inch 250CD/M2 30P LVDS LCD Screen MV238FHM N10 FHD PC LCD Module

BOE 23.8 Inch 250CD/M2 30P LVDS LCD Screen MV238FHM N10 FHD PC LCD Module

Brand Name: BOE
Model Number: MV238FHM-N10
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Brightnerss:
250CCD/M2
Connector:
30P
Color:
16.7M
Contrast Ratio:
1000:!
Working Life:
30K Hours
Touch Panel:
Without
Packaging Details:
Industrial packing
Highlight:

lcd display panel

,

lcd digital display

Product Description

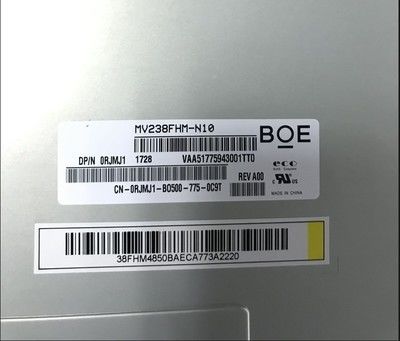

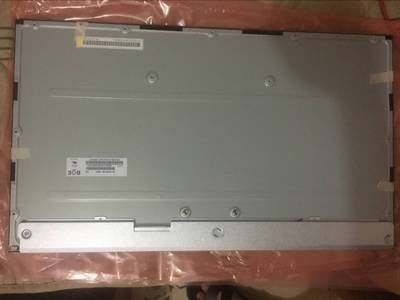

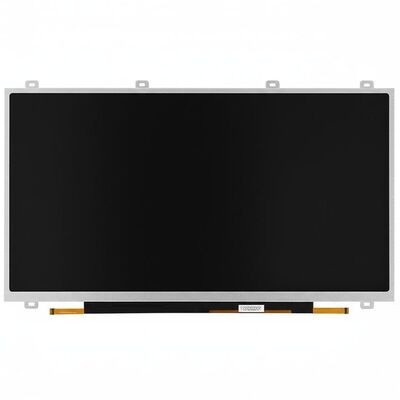

BOE 23.8 Inch LCD Display Screen MV238FHM-N10

Brand new original 23.8-inch LCD display screen with Full HD 1920*1080 resolution, 250 cd/m² brightness, and LVDS interface.

Key Features
  • BOE MV238FHM-N10 23.8-inch TFT-LCD panel
  • Full HD 1920*1080 resolution
  • 250 cd/m² brightness with 1000:1 contrast ratio
  • LVDS interface with 30-pin connector
  • WLED backlight with 30,000-hour lifespan
  • Antiglare surface with hard coating (3H)
Technical Specifications
Panel Brand BOE
Panel Model MV238FHM-N10
Panel Size 23.8 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1920*1080 (FHD)
Brightness 250 cd/m²
Contrast Ratio 1000:1
Viewing Angle 89/89/89/89
Response Time 14ms (G to G)
Display Colors 16.7M
Signal Interface LVDS (2 ch, 8-bit)
Input Voltage 5.0V
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Physical Dimensions
Display Area 527.04 * 296.46 mm
Bezel Opening 530.2 * 299.6 mm
Outline Size 543 * 317.4 * 11.4 mm
BOE 23.8 Inch 250CD/M2 30P LVDS LCD Screen MV238FHM N10 FHD PC LCD Module 0 BOE 23.8 Inch 250CD/M2 30P LVDS LCD Screen MV238FHM N10 FHD PC LCD Module 1

All original products undergo comprehensive testing before shipment to ensure quality and performance.

Detailed specifications available upon request - please contact us for complete technical documentation.
