Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks

Brand Name:	hanstar
Model Number:	HSD100IFW4-A00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1024*60pixels

Style:

WLED 30P

Brightness:

200 CCD M2

Color:

262K

Contrast Ratio:

500 :1

Working Life:

20K Hours

Packaging Details:

Industrial packing

Highlight:

lcd display panel

,

lcd digital display

Product Description

Notebook PC LCD Module HSD100IFW4 A00 Hannstar

10-inch LCD monitor touch screen display module designed for notebook and tablet PC applications.

Product Specifications

Brand	HannStar
Model	HSD100IFW4-A00
Diagonal Size	10.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB) * 600 [WSVGA]
Configuration	RGB Vertical Stripe
Active Area	220.416(H) * 129.15(V) mm
Outline Dimensions	235(H) * 145.8(V) * 5.8(D) mm
Bezel Area	223.42(H) * 132.15(V) mm
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	3/9 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/60 (Typ.)(CR ≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED, With LED Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	30 pins LVDS (1 ch, 6-bit), Connector
Power Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

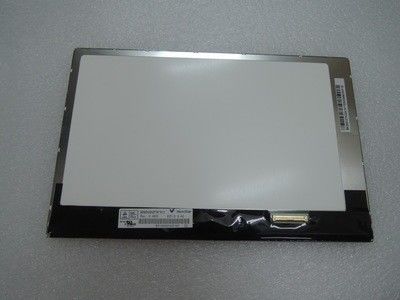

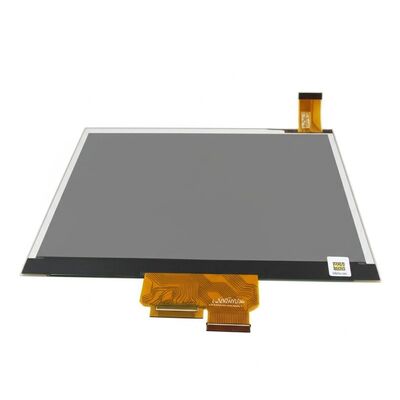

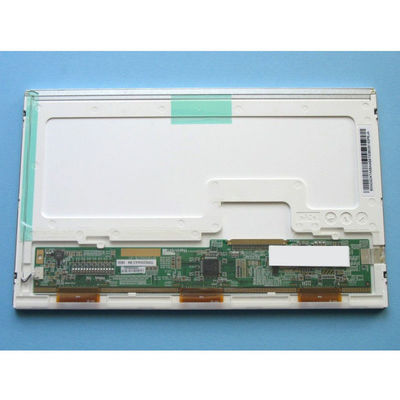

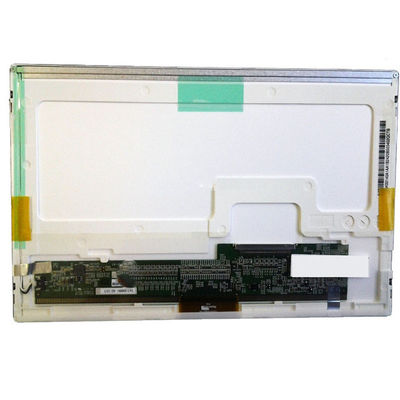

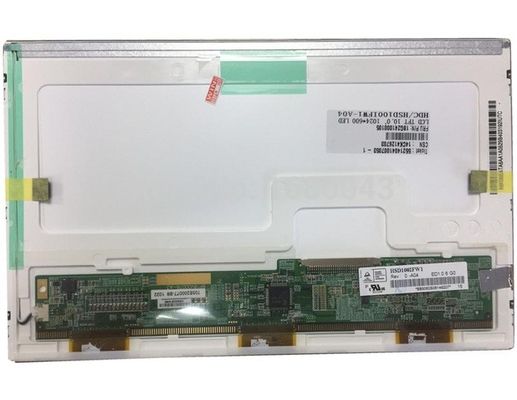

Product Images

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks 0

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks 1

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks 2

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks 3

Hannstar 10.1 Inch PC LCD Module with 1024x600 Pixels and 200 cd/m² Brightness for Notebooks 4

All products undergo individual inspection before shipment to ensure quality and performance standards.
