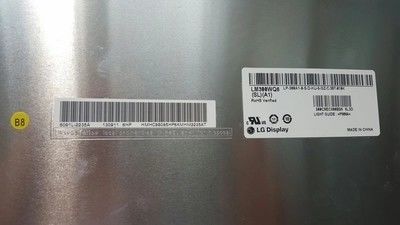

LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor

Brand Name:	LG
Model Number:	LM300WQ6-SLA1
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Supply Ability:

3000pcs per week

Highlight:

flat screen tv panel

lcd tv display panel

Product Description

LG 30Inch Brand New Original LCD Panel LM300WQ6-SLA1 2560*1600 Pixels 350CD 92P

Brand

LG Display

Model

LM300WQ6-SLA1

Diagonal Size

30.0 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

2560(RGB)×1600 [WQXGA]

Configuration

RGB Vertical Stripe

Active Area

641.28(H)×400.8(V) mm

Outline Dim.

677.3(H)×436.8(V) ×18.5(D) mm

Bezel Area

646.3(H)×405.8(V) mm

Treatment

Antiglare, Hard coating (3H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10) LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor 0

Operating Mode

AH-IPS, Normally Black, Transmissive

Support Color

1.07B 104% (CIE1931)

Light Source

GB-r LED , 30K hours , W/O Driver

Weight

4.15/4.36Kgs (Typ./Max.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

92 pins LVDS (4 ch, 10-bit) , Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

All Origianl product will be send to customer after full test one by one.

Spec details can be send to you via email,please contact us.
