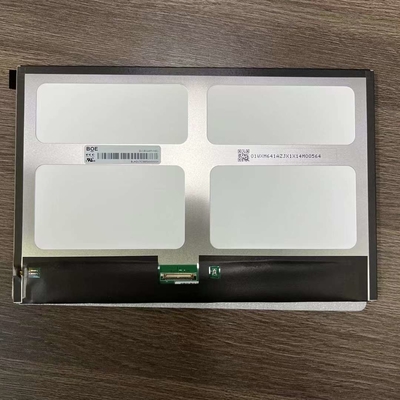

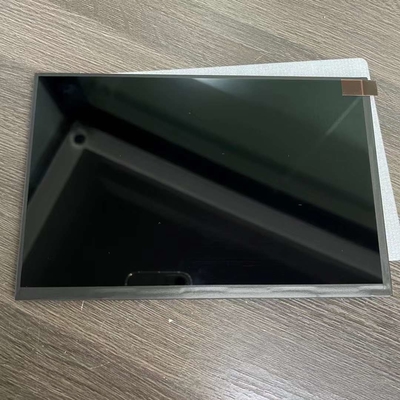

BOE 10.1Inch Industrial lcd model Tablet lcd panel GV101WXM-N81 1280X800Pixels 149PPI 300cd/M2 30PIN
Brand:BOE
Model P/N: GV101WXM-N81
Diagonal Size:10.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1280(RGB)×800, WXGA 149PPI
Pixel Format:RGB Vertical Stripe
Active Area: 216.96(W)×135.6(H) mm
Bezel Opening-
Outline Size: 228.3(W)×149.05(H) ×2.6(D) mm
SurfaceGlare (Haze 0%), Hard coating
Brightness: 300 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode: ADS, Normally Black, Transmissive
Best View on Symmetry
Response Time:30 (Typ.)(Tr+Td)
Display Colors: 16.7M 48% NTSC
Lamp Type: WLED , 15K hours , With LED Driver
Frequency: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouch ScreenWithout
Panel Weight:155g (Max.)
Application:Pad & Tablet Industrial
Signal Interface: eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector
Input Voltage3.3V (Typ.)
EnvironmentOperating Temp.: -20 ~ 60 °C ;
Storage Temp.: -20 ~ 60 °C
GV101WXM-N81
(Product Code: BOE03F2) is a 10.1" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Glossy , eDP1.2. Based on its features,einklcd recommend that this model be applied to Pad & Tablet
, Industrial
etc. According to the information stored in Einklcd this model mass production on Q3, 2020, Now this model is in production. We inputted this model's specification on Jul 9 2020 for the first time, and the latest update on Aug 11 2023. If you want to embed the LCM in your future product, Einlcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of GV101WXM-N81. The production status marked on Einklcd.com is for reference only and should not be used as the basis for the user's decision making.
