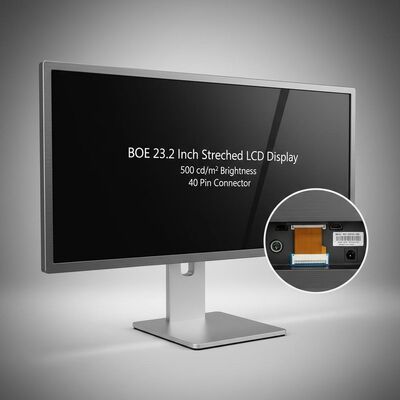

BOE 23.2 Inch Stretched Lcd Monitor 55PPI 500cd/M2 40 Pin EV232ZZM-N10

Name: BOE 23.2 Inch Stretched Lcd Monitor 55PPI 500cd/M2 40 Pin EV232ZZM-N10
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EV232ZZM-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	EV232ZZM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*92

Brightness:

500cd

Connector:

40pin

Contrast Ratio:

900:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

23.2 Inch Stretched Lcd Monitor

55PPI Stretched Lcd Monitor

BOE Stretched Lcd Monitor

Product Description

BOE 23.2 Inch Stretched Lcd Monitor 500cd/m2 40Pin EV232ZZM-N10 1280(RGB)×92 55PPI

BrandBOE
ModelEV232ZZM-N10
Diagonal Size23.2 inch
Typea-Si TFT-LCD, LCM
Pixel Format1280(RGB)×92 55PPI
ConfigurationRGB Vertical Stripe
Active Area588.48(H)×42.297(V) mm
Outline Dim.598.38(H)×56.897(V) mm
Bezel Area589.48(H)×44.297(V) mm
Treatment-
Luminance500 cd/m² (Typ.)
Contrast Ratio900:1 (Typ.) (TM)
View Direction-
Response Time15 (Typ.)(Tr+Td)
Viewing Angle80/80/70/60 (Typ.)(CR≥10)
Operating ModeADS, Normally Black, Transmissive
Support Color16.7M 72% NTSC
Light SourceWLED [10S8P] , W/O Driver
Frame Rate60Hz
Touch PanelWithout
Interface Type
LVDS (1 ch, 8-bit) , 40 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
