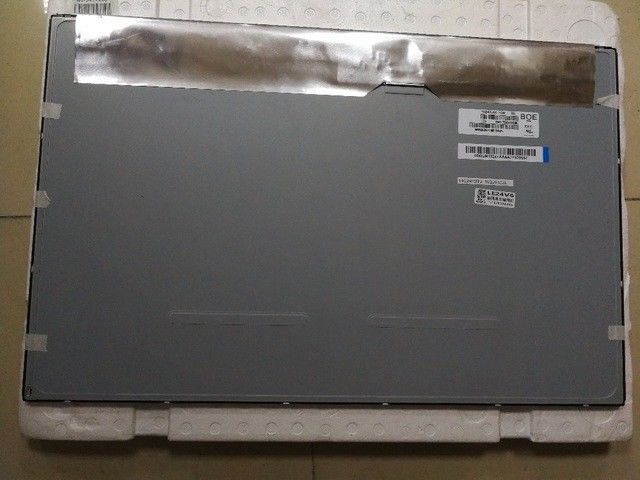

30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30

China 30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30 supplier
30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30 supplier 30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30 supplier

Large Image :  30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30

Product Details:

Place of Origin: KOREA
Brand Name: boe
Certification: Rohs,CE,FCC

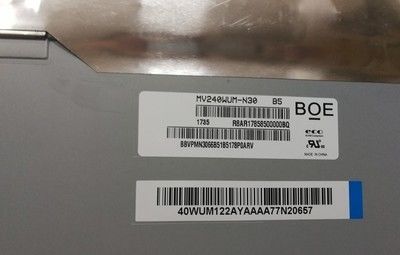

Model Number: MV240WUM-N30

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1920*1200
Brightness: 250cd Connector: 30pin
Contrast Ratio: 1000:1 Working Life: 30K Hours

Panel Brand

BOE

Panel Model

MV240WUM-N30

Panel Size

24.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1920(RGB)×1200 , WUXGA

Pixel Format

RGB Vertical Stripe

Display Area

518.4(W)×324(H) mm

Bezel Opening

-

Outline Size

546.4(W)×350(H) mm

Surface

Antiglare (Haze 25%), Hard coating (3H)

Brightness

250 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10) 30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30

Display Mode

ADS, Normally Black, Transmissive

Best View on

Symmetry

Response Time

14 (Typ.)(G to G)

Display Colors

16.7M 72% (CIE1931)

Lamp Type

WLED , 30K hours , Without Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

TBD

Application

30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30

Signal Interface

LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage

5.0V (Typ.)

Environment

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

30 PIN Full HD Touch Screen Monitor BOE 24'' 1920*1200 Pixels 250cd/m2 MV240WUM-N30

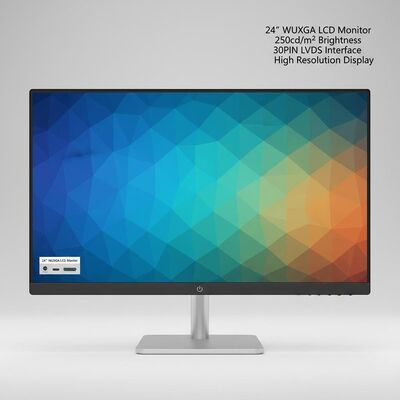

                                                    It's 250cd/m2  24inch BOE lcd MODEL for TV and monitor ,TV wall lcd,Destktop computer

                  All our LCD LED screen monitor module panel products will be full test one by one before sending .
