BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1

China BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1 supplier
BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1 supplier BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1 supplier

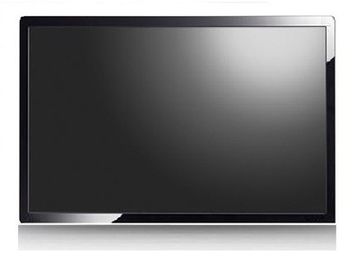

Large Image :  BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1

Product Details:

Place of Origin: KOREA
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: DV185WHM-NM1

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1366*768
Brightness: 250cd Connector: 30pin
Contrast Ratio: 1000:1

Panel Brand

BOE

Panel Model

DV185WHM-NM1

Panel Size

18.5"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1366(RGB)×768 , WXGA

Pixel Format

RGB Vertical Stripe

Display Area

409.8(W)×230.4(H) mm

Bezel Opening

413.4(W)×234.0(H) mm

Outline Size

430.4(W)×254.6(H) ×11.4(D) mm

Surface

Antiglare (Haze 25%), Hard coating (3H)

Brightness

250 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Display Mode

ADS, Normally Black, Transmissive

Best View on

Symmetry

Response Time

14 (Typ.)(G to G)

Display Colors

16.7M 75% (CIE1931)

Lamp Type

6S4P WLED , 30K hours , Without Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

1.30Kgs (Typ.)

Application

BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1

Signal Interface

LVDS (1 ch, 8-bit) , 30 pins , Connector

Input Voltage

5.0V (Typ.)

Environment

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C



BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1BOE 18.5 Inch Medical Industrial Lcd Screen Model 1366*768 Pixels DV185WHM-NM1



                         All our LCD LED screen monitor module panel products will be full test one by one before sending .
