LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin

LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin
LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin

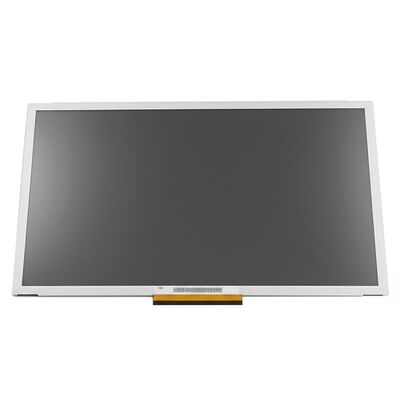

Large Image :  LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin

Product Details:
Place of Origin: China
Brand Name: sharp
Certification: Rohs,CE,FCC
Model Number: LQ201U1LW32
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin

Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 1600*1200 Style: 30PIN IPS
Brightness: 260 CD/M2 Color: 16.7M
Contrast Ratio: 1400 :1
High Light:

industrial panel pc touch screen

,

industrial computer monitor

  • Manufacturer
  • Sharp
  • Model Name
  • LQ201U1LW32
  • Screen Size 20.1 inch
  • Screen Type LCM, a-Si TFT-LCD
  • Pixel Number 1600(RGB)×1200 (UXGA)
  • Arrangement RGB Vertical Stripe
  • Active Area(mm) 408 × 306 (H×V)
  • Outline(mm) 436 × 335 × 20.4 (H×V×D)
  • Bezel Area(mm) 413.2 × 311.2 (H×V)
  • Treatment Antiglare, Hard coating (2H)
  • Luminance 260 cd/m² (Typ.)
  • Contrast Ratio 1400 : 1 (Typ.) (TM)
  • Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
  • Response 30 (Typ.)(Tr+Td) ms
  • Good View at Symmetry
  • Work ModeVA, Normally Black, Transmissive
  • Color Depth16.7M 71% (CIE1931)
  • BacklightWLED , 50K hours , With LED Driver
  • Mass2.40Kgs (Max.)
  • Used for LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 0 LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 1
  • Refresh Rate60Hz
  • TouchscreenWithout
  • Signal Type
  • LVDS (2 ch, 8-bit) , Connector , 30 pins
  • Voltage Supply
  • 12.0V (Typ.)
  • Max. Ratings
  • Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 2LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 3LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 4LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 5LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 6LQ201U1LW32 Industrial LCD Display Medical Imaging Monitor 1600*1200 Pixels 30 Pin 7



   All Origianl product will be send to customer after full test one by one.

  • Spec details can be send to you via email,please contact us.
