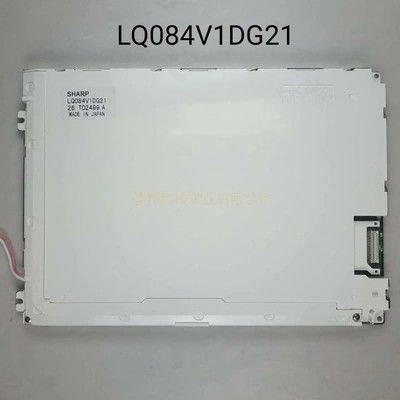

LQ084V1DG21 Touch Screen Display , 640 * 480 Pixels Touch Screen Wall Monitor 31 PIN 262K Colors

Sharp 8.4inch LG-Philip LCD monitor LQ084V1DG21 640*480pixels 31PIN 262K colors Industrial equipment 50K working life

Manufacturer

Sharp

Model Name

LQ084V1DG21

Screen Size

8.4 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

640(RGB)×480 (VGA)

Arrangement

RGB Vertical Stripe

Active Area(mm)

170.88 × 129.6 (H×V)

Outline(mm)

216 × 152.4 × 12.5 (H×V×D)

Bezel Area(mm)

175.9 × 134.6 (H×V)

Treatment

Antiglare (Haze 28%), Hard coating (3H), Antireflection

Luminance

300 cd/m² (Typ.)

Contrast Ratio

250 : 1 (Typ.) (TM)

Viewing Angle

55/55/55/40 (Typ.)(CR≥10)

Response

20/40 (Typ.)(Tr/Td) ms

Good View at

12 o'clock

Work Mode

TN, Normally White, Transmissive

Color Depth

262K

Backlight

1 pcs CCFL , 50K hours , No Driver

Mass

410±20g

Used for

Refresh Rate

-

Touchscreen

Without

Signal Type

Parallel RGB (1 ch, 6-bit) , Connector , 31 pins

Voltage Supply

3.3/5.0V (Typ.)(VCC)

Max. Ratings

Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 60 °C

• All Origianl product will be send to customer after full test one by one.
• Spec details can be send to you via email,please contact us.
