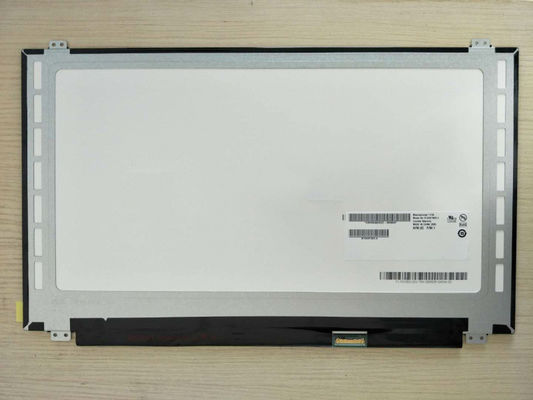

B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement

B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement
B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement

Large Image :  B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement

Product Details:
Place of Origin: China
Brand Name: auo
Certification: Rohs,CE,FCC
Model Number: b156htn03.8
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement

Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 1920*1080pixels Style: WLED30P
Brightness: 220 CCD M2 Color: 262K
Contrast Ratio: 400 :1 Working Life: 15K Hours
High Light:

lcd touch screen module

,

lcd digital display

  • AUO 15.61inch lcd display B156HTN03.8 for HP Dell tablet PC 1920*1080 pixels 220 CCD 30Pin replacement
  •
  • Panel Brand
    AUO
  • Panel Model
    B156HTN03.8 (AUO38ED)
  • Panel Size
    15.6 inch
  • Panel Type
    a-Si TFT-LCD, LCM
  • Resolution
    1920(RGB)×1080 , FHD
  • Pixel Format
    RGB Vertical Stripe
  • Display Area
    344.16(W)×193.59(H) mm
  • Bezel Opening
    -
  • Outline Size
    359.5(W)×223.8(H) ×3.2(D) mm
  • Surface
    Antiglare
  • Brightness
    220 cd/m² (Typ.)
  • Contrast Ratio
    400:1 (Typ.) (TM)
  • Viewing Angle
    45/45/15/35 (Typ.)(CR≥10)
  • Display Mode
    TN, Normally White, Transmissive
  • Best View on
    6 o'clock
  • Response Time
    8 (Typ.)(Tr+Td)
  • Display Colors
    262K 45% (CIE1931)
  • Lamp Type
    WLED , 15K hours , With LED Driver
  • Frequency
    60Hz
  • Touch Screen
    Without
  • Shape Style
    Slim (PCBA Flat, Depth ≤3.2mm)
  • Application
    B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement 0
  • Signal Interface
  • eDP (2 Lanes) , 30 pins , Connector
  • Input Voltage
  • 3.3V (Typ.)
  • Environment
  • Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
  • B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement 1B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement 2B156HTN03 8 PC LCD Module High Resolution For HP Dell Tablet PC 220 CCD 30 Pin Replacement 3

All products will be send to customer after inspection one by one.
