PVI 8inch E Ink Display EPD Panel with 1024x768pixels Resolution and 33Pin Connector

Name: PVI 8inch E Ink Display EPD Panel with 1024x768pixels Resolution and 33Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: ED080XC2
Price: 30.00 USD
Availability: InStock

Brand Name:	PVI
Model Number:	ED080XC2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Version:

Original Verion With Backlight

Color:

White And Black

Meterial:

Glass

Touch Panel:

Backlight:

Yes

Frame:

Screen Size:

8inch

Connector:

33pin

Packaging Details:

Industrial packing

Highlight:

8inch E Ink Display

1024x768pixels EPD Panel

33Pin Electronic Paper Display

Product Description

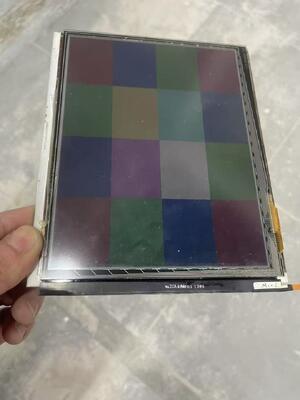

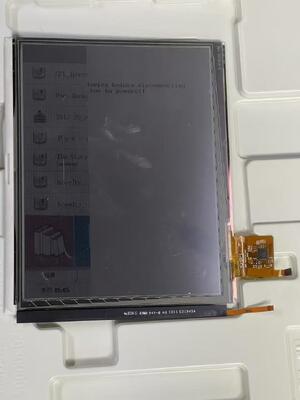

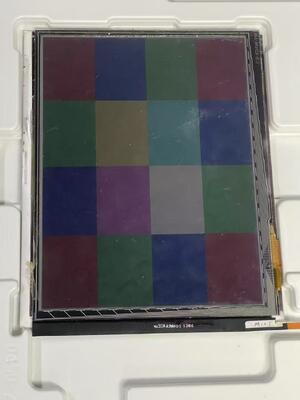

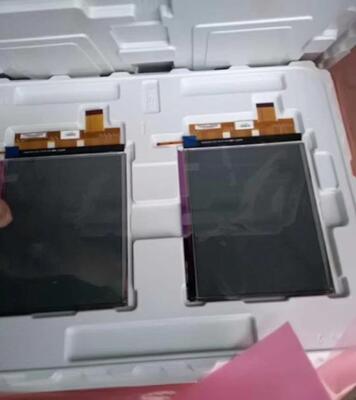

PVI 8-inch E Ink Display ED080XC2

The ED080XC2 is an 8.0-inch diagonal EPD display panel from Prime View International Co., Ltd. (PVI). This reflective, bi-stable display features a 1024*768 XGA resolution with 160 PPI pixel density and operates without backlight or touch screen functionality.

Product Overview

Originally designed for E-Book Reader applications, this model entered mass production in Q1 2009 and is currently discontinued. The display offers matte surface treatment with anti-glare hard coating and operates in grayscale mode.

Technical Specifications

Brand	PVI
Model Number	ED080XC2
Display Size	8.0-inch diagonal
Panel Type	EPD (Electronic Paper Display)
Resolution	1024 * 768 pixels (XGA)
Pixel Density	160 PPI
Pixel Format	Rectangle
Active Area	161.792mm (W) * 121.344mm (H)
Outline Dimensions	175.642mm (H) * 138.344mm (V) * 1.28mm (D)
Surface Treatment	Anti-glare, Hard coating
Contrast Ratio	7:1 (Typical, Reflective)
Response Time	780ms (Typical, Tr+Td)
Color Support	Grayscale
Light Source	No Backlight
Touch Panel	Without
Interface	Parallel Data (1ch, 8-bit), 33-pin FPC
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C
Weight	TBD

Important Note: This model is currently discontinued. For integration into future products, we strongly recommend contacting PVI or their authorized agents for the latest production status and specification details. The information provided here is for reference only and should not be used as the sole basis for decision-making.
