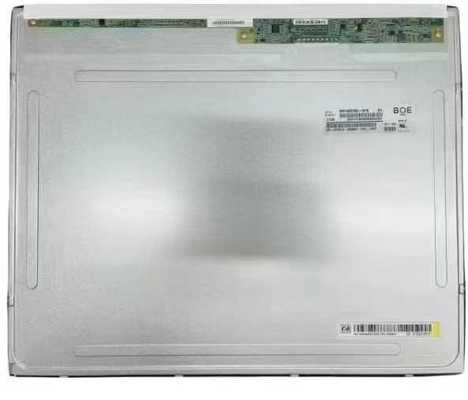

BOE 19 Inch Desktop LCD Monitor with 1280x1024 Pixels Resolution and 30 Pin Interface

BOE 19 Inch Desktop LCD Monitor with 1280x1024 Pixels Resolution and 30 Pin Interface

BOE 19 Inch Desktop LCD Monitor with 1280x1024 Pixels Resolution and 30 Pin Interface

Brand Name: BOE
Model Number: MV190E0M-N10
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1280*1024pixels
Style:
30PIN IPS
Brightness:
250CD/M2
Color:
16.7M
Contrast Ratio:
1000 :1
Working Life:
30K Hours
Screen Size:
19inch
Touch Screen:
Without
Packaging Details:
Industrial packing
Highlight:

1280x1024 Pixels LCD Display Panel

,

19 Inch PC LCD Module

,

30 Pin Desktop LCD Monitor

Product Description

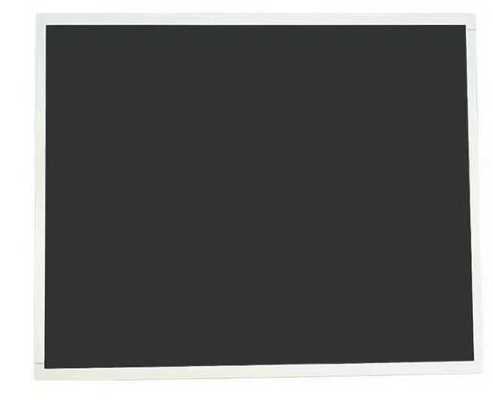

BOE 19-Inch Desktop LCD Display Panel MV190E0M-N10
High-performance 19-inch TFT-LCD display panel with 1280×1024 SXGA resolution, featuring WLED backlight technology and LVDS interface for desktop monitor applications.
Key Features
  • 19.0-inch diagonal a-Si TFT-LCD display
  • 1280×1024 SXGA resolution with 86 PPI
  • WLED backlight system with 30,000-hour lifespan
  • LVDS interface with 30-pin connector
  • 250 cd/m² luminance and 1000:1 contrast ratio
  • ADS technology with normally black mode
  • Antiglare treatment with hard coating (3H)
Technical Specifications
Model Number MV190E0M-N10
Display Type a-Si TFT-LCD, LCM
Active Area 374.784 × 299.827 mm
Outline Dimensions 396 × 324 × 10.4 mm
Pixel Format RGB Vertical Stripe
Viewing Angle 89/89/89/89 (Left/Right/Up/Down)
Response Time 8/8 ms (Typ. Tr/Td), 14 ms (Typ. G to G)
Color Support 16.7M colors, 72% NTSC
Frame Rate 75Hz
Interface LVDS (2 ch, 8-bit), 30-pin connector
Power Supply 5.0V (Typical)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Weight 1.69 kg (Typical)
BOE 19 Inch Desktop LCD Monitor with 1280x1024 Pixels Resolution and 30 Pin Interface 0
Application
Specifically designed for desktop monitor applications, this display panel offers reliable performance and excellent image quality for professional and commercial use.
Note: Production status information is for reference only. For the latest production details and specifications, please contact BOE or their authorized distributors directly.
