BOE 12.5 Inch LCD Display Panel NV125FHM-N85 with 1920x1080 Pixels FHD and 30pin IPS Interface

Name: BOE 12.5 Inch LCD Display Panel NV125FHM-N85 with 1920x1080 Pixels FHD and 30pin IPS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV125FHM-N85
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV125FHM-N85
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

30PIN IPS

Brightness:

300CD/M2

Color:

16.7M

Contrast Ratio:

600 :1

Working Life:

30K Hours

Screen Size:

12.5inch

Touch Screen:

Without

Packaging Details:

Industrial packing

Highlight:

12.5 inch LCD Display Panel

1920x1080 Pixels TFT-LCD Module

30pin IPS LCD Monitor Panel

Product Description

BOE 12.5-Inch Tablet LCD Display Panel NV125FHM-N85

High-performance 12.5-inch FHD LCD display panel featuring 1920×1080 resolution with 176 PPI pixel density. This 30-pin interface panel is engineered for laptop applications with advanced display technologies.

Key Features

12.5-inch diagonal a-Si TFT-LCD display
Full HD 1920×1080 resolution with 176 PPI
WLED backlight system with LED driver
ADS technology with normally black, transmissive operation
30-pin eDP interface (2 lanes, HBR1 2.7G/lane)
120Hz/240Hz refresh rate capabilities with embedded MEMC circuit
Matte anti-glare surface treatment

Technical Specifications

Brand & Model	BOE NV125FHM-N85 (Product Code: BOE0882)
Panel Type	a-Si TFT-LCD, LCM
Active Area	276.48mm (W) × 155.52mm (H)
Outline Dimensions	282.4mm (H) × 168.72mm (V) × 4.2mm (D)
Brightness	300 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	85°/85°/85°/85° (Left/Right/Up/Down, CR≥10)
Response Time	30ms (Typical, Tr+Td)
Color Support	16.7M colors, 50% NTSC
Light Source	WLED [9S3P], 15K hours lifespan, with LED driver
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	Maximal 1.5G (14.7 m/s²)

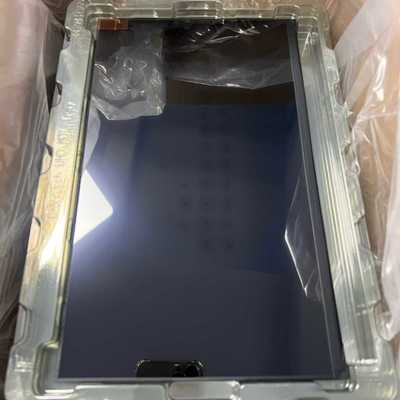

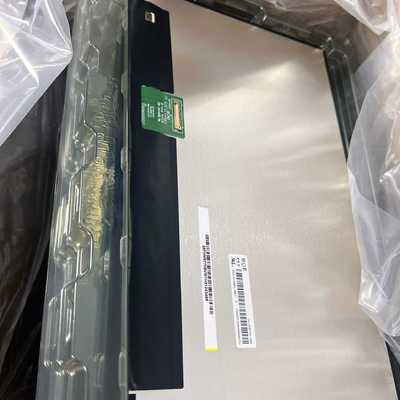

Display Image

Production Note: This model entered mass production in Q4 2019 and is currently in active production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting BOE or their authorized agents directly.
