Innolux 13.3 Inch 1920x1080 Pixels 30 Pin Connector LCD Display Panel for Laptop TFT-LCD Module

Name: Innolux 13.3 Inch 1920x1080 Pixels 30 Pin Connector LCD Display Panel for Laptop TFT-LCD Module
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: N133HCE-G52
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	N133HCE-G52
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

800:1

Color:

16.7M

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Screen Size:

13.3inch

Packaging Details:

Industrial packing

Highlight:

1920x1080 Pixels LCD Display Panel

13.3 Inch TFT-LCD Module

30 Pin Connector Laptop LCD Screen

Product Description

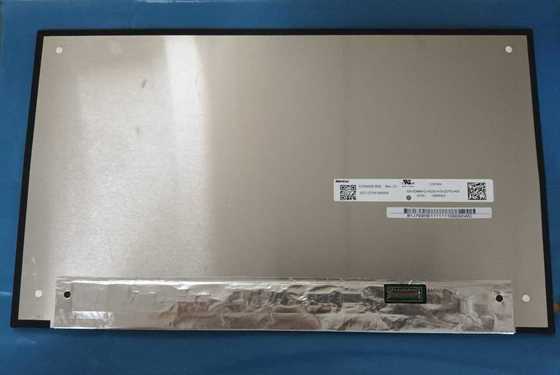

Innolux 13.3-inch Laptop LCD Display Model N133HCE-G52

The N133HCE-G52 (Product Code: CMN1382) is a 13.3-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation, featuring an integrated WLED backlight system with LED driver. This display does not include a touch screen and is designed for laptop applications.

Key Features

• 1920×1080 Full HD resolution (166 PPI)
• 100% sRGB color gamut
• 300 cd/m² brightness
• 800:1 contrast ratio
• IPS technology with wide viewing angles
• eDP 1.3 interface with 30-pin connector
• Slim design with PCBA bent configuration

Technical Specifications

Brand	Innolux
Model P/N	N133HCE-G52
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080 (FHD), 166 PPI
Active Area	293.76(W)×165.24(H) mm
Outline Size	300.26(W)×177.55(H)×4.4(D) mm
Brightness	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Response Time	14/11 ms (Typ.)(Tr/Td)
Display Colors	262K, 100% sRGB
Backlight	WLED, 15K hours, With LED Driver
Refresh Rate	60Hz (with embedded MEMC circuit options)
Signal Interface	eDP (2 Lanes), eDP1.3, 30 pins
Input Voltage	3.3V (Typ.)
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C

Note: This model entered mass production in Q2 2018 and is currently in production. For the latest production status and detailed specifications, please contact Innolux or their authorized agents directly. Information provided is for reference only and should not be used as the sole basis for decision-making.
