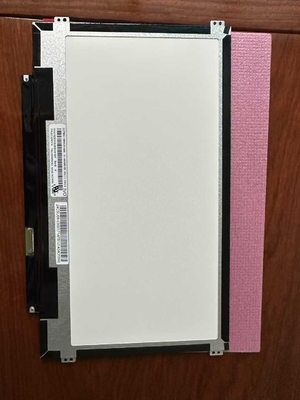

IVO 11.6inch lcd model M116NWR6 R5 1366*768Pixels 30PIN 135PPI laptop lcd panel

The M116NWR6 R5 is a 11.6 inch diagonal a-Si TFT-LCD display panel product from InfoVision Optoelectronics Kunshan Co., Ltd. (hereafter called IVO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.2. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q3, 2020, Now this model is discontinued. We inputted this model's specification on Jul 12 2024 for the first time. If you want to embed M116NWR6 R5 LCM in your future product, einklcd strongly recommend that you should contact with IVO or it's agent to learn lateast production and specification detail. The M116NWR6 R5 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand IVO

Model P/N: M116NWR6 R5
Diagonal Size11.6"

Panel Type: a-Si TFT-LCD, LCM
Resolution1366(RGB)×768, WXGA 135PPI Pixel

Format: RGB Vertical Stripe
Active Area 256.125(W)×144(H) mm

Bezel Opening-
Outline Dim.277.8(W)×167(H)×3(D) mm

Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock

Response Time 10 (Typ.)(Tr+Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: TN, Normally White, Transmissive
Support Color 262K 45%

NTSC Light Source WLED , 15K hours , With LED Driver
Form Style Slim (PCBA Flat, T≤3.2mm)

Designed For Laptop
Frame Rate: 60Hz

Touch Panel Without

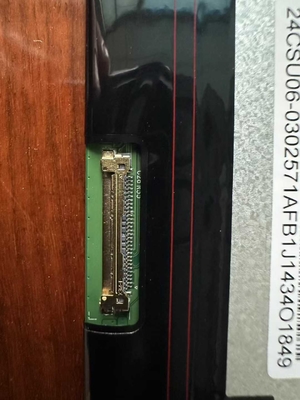

Interface Type: eDP (1 Lane) , eDP1.2 , 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C
