IVO 13.3 Inch 1920x1200 Resolution 300 cd/m² Brightness LCD Panel for Laptop TFT-LCD Display

Name: IVO 13.3 Inch 1920x1200 Resolution 300 cd/m² Brightness LCD Panel for Laptop TFT-LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M133NW4J R3
Price: 30.00 USD
Availability: InStock

Brand Name:	IVO
Model Number:	M133NW4J R3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1200 Ixels

Style:

FHD 30P

Brightness:

300 CCD M2

Color:

16.7M

Contrast Ratio:

1200 :1

Working Life:

15K Hours

Screen Size:

13.3inch

Packaging Details:

Industrial packing

Highlight:

1920x1200 Resolution LCD Panel

13.3 Inch TFT-LCD Display

300 cd/m² Brightness Laptop LCD Screen

Product Description

IVO 13.3-inch LCD Panel Model M133NW4J R3

High-resolution 13.3-inch laptop LCD display panel featuring 1920×1200 WUXGA resolution, 170 PPI pixel density, and 30-pin eDP interface. This professional-grade display offers exceptional color accuracy and viewing angles for laptop applications.

Product Overview

The M133NW4J R3 is a 13.3-inch diagonal a-Si TFT-LCD display panel from InfoVision Optoelectronics Kunshan Co., Ltd. (IVO). This panel features an integrated WLED backlight system with LED driver and operates without a touch screen. Designed for reliable performance in laptop applications with robust temperature and vibration specifications.

Key Features

13.3-inch WUXGA Display (1920×1200 resolution)
170 PPI High Pixel Density
IPS Technology with 89°/89°/89°/89° Viewing Angles
100% sRGB Color Gamut with 16.7 Million Colors
WLED Backlight with 15,000 Hours Lifespan
eDP 1.4 Interface with 30-pin Connector
Anti-glare Matte Surface Treatment
Multiple Refresh Rate Options including 120Hz and 240Hz modes

Technical Specifications

Brand	IVO
Model Number	M133NW4J R3
Panel Type	a-Si TFT-LCD, LCM
Diagonal Size	13.3 inches
Resolution	1920(RGB)×1200 (WUXGA)
Pixel Density	170 PPI
Active Area	286.08mm × 178.8mm
Outline Dimensions	291.08mm × 187.9mm × 4.5mm (H×V×D)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Response Time	30ms (Typical, Tr+Td)
Color Depth	16.7 Million Colors
Signal Interface	eDP (2 Lanes), 30-pin Connector
Operating Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²)

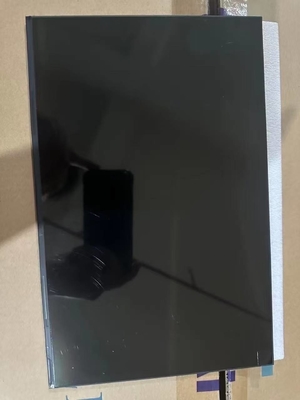

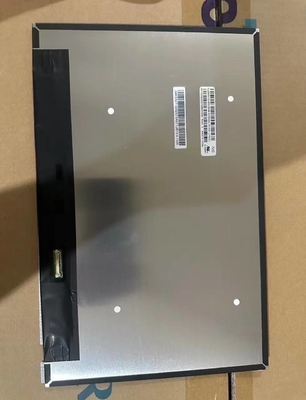

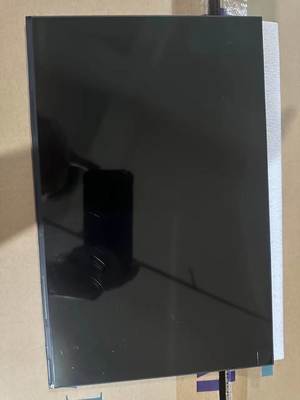

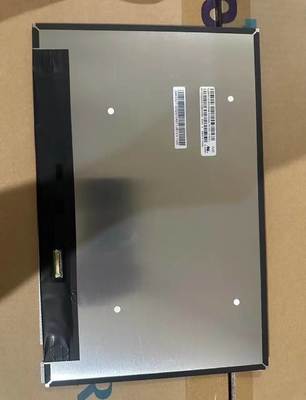

Product Image

Important Note: The production status information provided is for reference only and should not be used as the sole basis for decision-making. For the latest production and specification details, please contact IVO or their authorized agents directly.
