BOE 15.6 Inch LCD Display Panel with 1920x1080 Pixels FHD Resolution and 40PIN IPS Interface

BOE 15.6 Inch LCD Display Panel with 1920x1080 Pixels FHD Resolution and 40PIN IPS Interface

BOE 15.6 Inch LCD Display Panel with 1920x1080 Pixels FHD Resolution and 40PIN IPS Interface

Brand Name: BOE
Model Number: NT156FHM-TS0
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1920*1080pixels
Style:
40PIN IPS
Brightness:
220CD/M2
Color:
16.7M
Contrast Ratio:
500 :1
Working Life:
15K Hours
Screen Size:
15.6inch
Touch Screen:
Yes, On-cell Touch Panel
Packaging Details:
Industrial packing
Highlight:

15.6 Inch LCD Display Panel

,

1920x1080 Pixels TFT-LCD Module

,

40PIN IPS Desktop LCD Monitor

Product Description
BOE 15.6 Inch Desktop LCD Display Panel NT156FHM-TS0
15.6" diagonal Full HD display panel with 1920*1080 resolution, 141 PPI pixel density, and 40-pin eDP interface. Features On-Cell touch technology and advanced refresh rate capabilities.
Key Features
  • 15.6" diagonal a-Si TFT-LCD display with 1920*1080 FHD resolution
  • 141 PPI pixel density for sharp, clear images
  • On-Cell touch technology with I²C interface
  • Advanced refresh rate: 60Hz native, up to 120Hz with embedded MEMC circuit
  • 220 cd/m² typical luminance with 500:1 contrast ratio
  • eDP 1.2 interface with 2 lanes, 40-pin connector
  • Antiglare hard coating (3H) for reduced reflections
  • WLED backlight system with 15,000-hour lifespan
Technical Specifications
Model NumberNT156FHM-TS0 (BOE000A)
Panel Typea-Si TFT-LCD, LCM
Active Area344.16 * 193.59 mm
Outline Dimensions350.66 * 216.25 * 3.2 mm
Resolution1920(RGB) * 1080 (FHD)
Pixel Density141 PPI
Luminance220 cd/m² (Typical)
Contrast Ratio500:1 (Typical)
Response Time12ms (Typical, Tr+Td)
Viewing Angle45/45/20/40 (Left/Right/Up/Down, CR≥10)
Color Support16.7M colors, 45% NTSC
InterfaceeDP (2 Lanes), eDP1.2, 40-pin connector
Power Supply3.3V (Typical)
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Refresh Rate Capabilities
60Hz: Native panel refresh rate
120Hz (60Hz Input): With embedded MEMC circuit
120Hz+120Hz: 120Hz Panel + 120Hz Backlight
240Hz (60Hz Input): With embedded MEMC circuit
Product Images

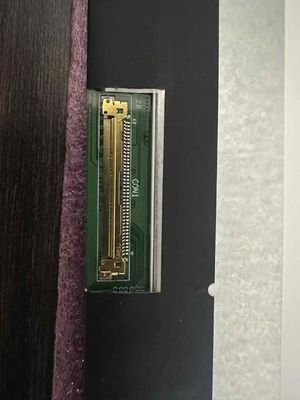

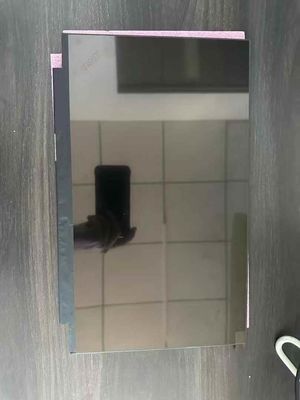

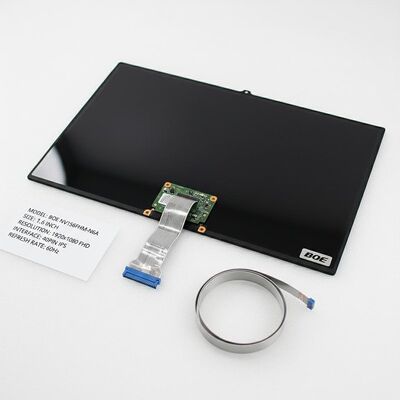

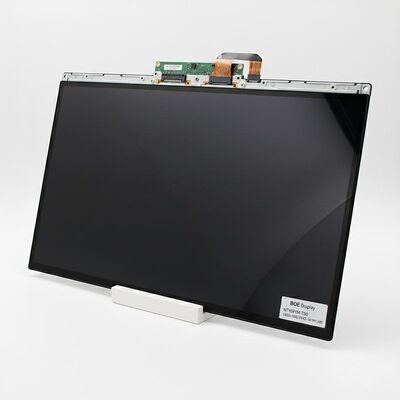

BOE 15.6 Inch LCD Display Panel with 1920x1080 Pixels FHD Resolution and 40PIN IPS Interface 0 BOE 15.6 Inch LCD Display Panel with 1920x1080 Pixels FHD Resolution and 40PIN IPS Interface 1
Production Note: This model entered mass production in Q4 2021 and is currently in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details.
Application
Designed primarily for laptop displays and compatible desktop monitor applications requiring high-quality visual performance with touch capability.
