Innolux 10.1inch LCD Panel EJ101IA-01G TFT-LCD Display with 1280x800 Pixels and 550 cd/m² Brightness

Name: Innolux 10.1inch LCD Panel EJ101IA-01G TFT-LCD Display with 1280x800 Pixels and 550 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EJ101IA-01G
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	EJ101IA-01G
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800 Ixels

Style:

Lcm

Brightness:

550 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Screen Size:

10.1inch

Packaging Details:

Industrial packing

Highlight:

EJ101IA-01G table lcd panel

10.1inch table lcd panel

1280*800 Pixels table lcd panel

Product Description

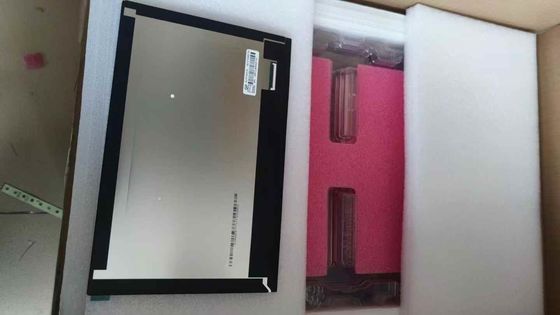

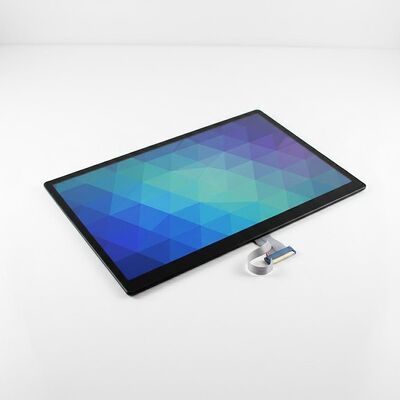

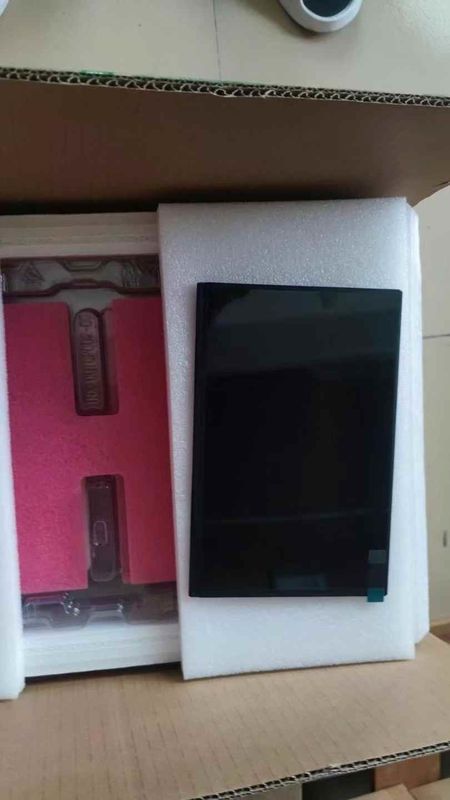

Innolux 10.1-inch Tablet LCD Panel EJ101IA-01G

The Innolux EJ101IA-01G is a 10.1-inch diagonal a-Si TFT-LCD display panel designed for tablet applications. This high-quality display features 1280*800 WXGA resolution with 149 PPI pixel density, delivering sharp, clear visuals with excellent color reproduction.

Key Features

10.1-inch diagonal display with 1280*800 resolution
149 PPI for sharp, detailed images
IPS technology with wide viewing angles
High brightness of 550 cd/m²
1000:1 contrast ratio
WLED backlight with 15,000-hour lifespan
40-pin LVDS interface
Hard coating treatment for durability

Technical Specifications

Model Number	EJ101IA-01G
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800 (WXGA)
Pixel Density	149 PPI
Active Area	216.96*135.6 mm
Outline Dimensions	229.46149.14.66 mm
Luminance	550 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Response Time	10/15 ms (Tr/Td)
Color Depth	16.7 million colors
Color Gamut	50% NTSC
Interface	LVDS (1 channel, 8-bit)
Connector	40-pin
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 70°C
Weight	183g (Typical)

Application

This display panel is specifically designed for tablet and pad applications, offering reliable performance and excellent visual quality for mobile computing devices.

Note: Production status information is for reference only. For the latest production details and specifications, please contact Innolux or their authorized distributors.
