BOE 12.1inch industrial & Medical Imaging LCD Panel EV121XOM-N10 1024*768Pixels 105ppi 500CD/M2 20pin 3.3V

Brand Name:	BOE
Model Number:	EV121XOM-N10
MOQ:	10pcs
Price:	USD48/PC
Packaging Details:	Industrial packing
Payment Terms:	T/T,W,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Style:

Wide Screen High Resolution 1024*768Pixels

Brightness:

500cd

Connector:

20PIN

Contrast Ratio:

1200:1

Working Time:

50k Hours

Screen Size:

12.1inch

Supply Ability:

3000pcs per week

Highlight:

1024*768Pixels Medical Imaging LCD Panel

EV121XOM-N10 Medical Imaging LCD Panel

12.1inch Medical Imaging LCD Panel

Product Description

BOE 12.1inch industrial & Medical Imaging LCD PanelEV121XOM-N10 1024*768Pixels 105ppi 500CD/M2 20pin 3.3V

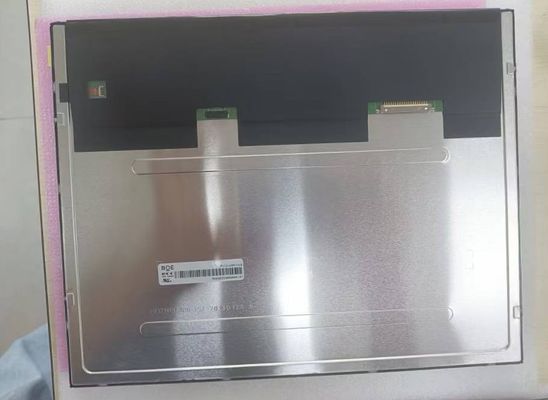

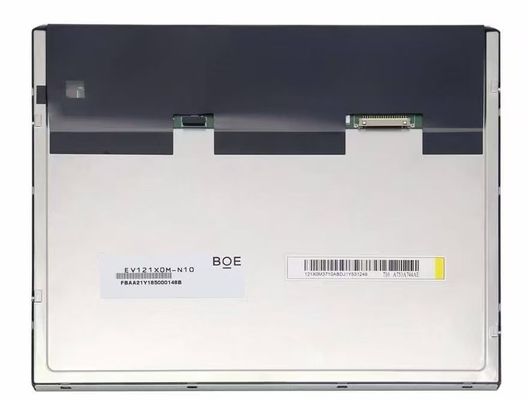

EV121X0M-N10 is a 12.1" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, U/D,L/R Reverse . Based on its features, einklcd recommend that this model be applied to Industrial, Healthcare etc. According to the information stored in einklcd this model mass production on Q1, 2020, Now this model is in production. We inputted this model's specification on Jan 28 2019 for the first time, and the latest update on Feb 6 2025. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of EV121X0M-N10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand BOE

Model P/N: EV121X0M-N10
Diagonal Size: 12.1"

Panel Type: a-Si TFT-LCD, LCM
Resolution:1024(RGB)×768, XGA 105PPI Pixel

Format RGB Vertical Stripe
Active Area 245.76(W)×184.32(H) mm

Bezel Opening:249(W)×187.5(H) mm

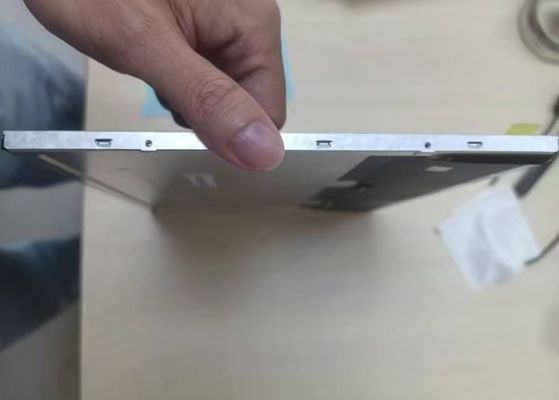

Outline (mm) 260.5×204×9.2 (H×V×D)

Treatment-
Luminance: 500 cd/m² (Typ.)

Contrast Ratio1200 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down

Response 25 (Typ.)(Tr+Td) ms
Good View atSymmetryWork ModeADS, Normally Black, Transmissive
Color Depth16.7M 72% NTSC

Backlight:WLED , 50K hours , With LED Driver
Mass520g (Max.)

Used for: Industrial & Healthcare
Refresh Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type: LVDS (1 ch, 8-bit) , Connector 20 pins
Voltage Supply:3.3V (Typ.)
Max. Ratings

Storage Temp.: -30 ~ 80 °C

Operating Temp.: -20 ~ 70 °C
