BOE 11.6Inch PC LCD Module with 1280x1752 Pixels and In-Cell Touch LCD Display Panel

Name: BOE 11.6Inch PC LCD Module with 1280x1752 Pixels and In-Cell Touch LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TV116FMM-LB0
Price: 26 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TV116FMM-LB0
MOQ:	10pcs
Price:	$26
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*1752 Ixels

Style:

LCD

Brightness:

280 CCD M2

Color:

16.7M

Contrast Ratio:

1400 :1

Working Life:

15K Hours

Touch Panel:

In-cell Touch

Screen Size:

11.6inch

Packaging Details:

Industrial packing

Highlight:

11.6Inch laptop lcd panel

1280*1752Pixels laptop lcd panel

187PPI laptop lcd panel

Product Description

BOE 11.6-Inch Laptop LCD Panel

High-resolution 1280*1752 pixel display with 187 PPI density, featuring 45-pin connector and 16.7 million color support. Original brand new condition from BOE Technology Group.

Product Overview

The BOE TV116FMM-LB0 is an 11.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and In-Cell Touch technology. Designed for portrait orientation applications including tablets and portable devices.

Key Features

11.6-inch active display area
High resolution: 1280(RGB)*1752 pixels
187 PPI pixel density for sharp imagery
In-Cell Touch technology with I²C interface
16.7 million color depth with 75% NTSC
WLED backlight with 15,000-hour lifespan
MIPI interface with 45-pin connector

Technical Specifications

Brand	BOE
Model Number	TV116FMM-LB0
Panel Type	a-Si TFT-LCD Assembly
Resolution	1280(RGB)*1752 (187 PPI)
Active Area	173.453mm * 237.413mm (W*H)
Outline Dimensions	190mm * 258.339mm * 5.1mm (HVD)
Luminance	280 cd/m² (Typical)
Contrast Ratio	1400:1 (Typical)
Viewing Angle	80/80/80/80 (CR≥10)
Response Time	30ms (Typical, Tr+Td)
Color Depth	16.7M colors
Refresh Rate	60Hz
Interface	MIPI (4 data lanes), 45-pin connector
Operating Voltage	1.8V/5.8V/-5.8V (VDDI/AVDD/AVEE)
Operating Temperature	-20°C to 60°C
Storage Temperature	-30°C to 70°C
Weight	245g (Maximum)

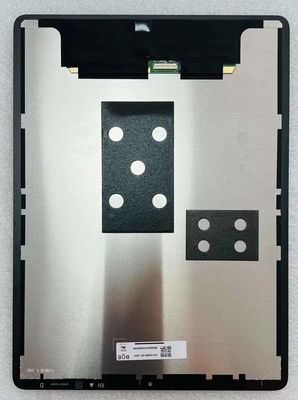

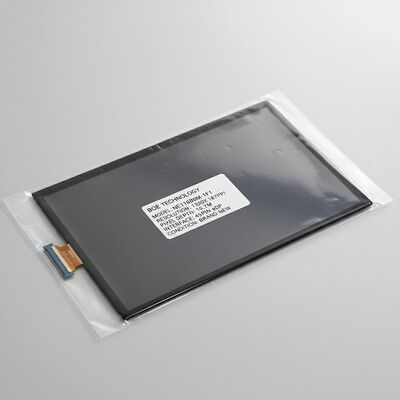

Display Images

Important Note: This model entered mass production in Q3 2022 and is currently discontinued. For integration into future products, please contact BOE or their distributors for the latest production status and specifications. Information provided is for reference only.
