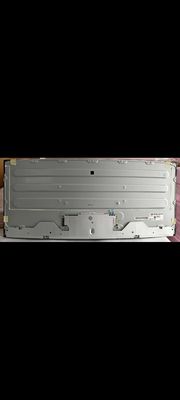

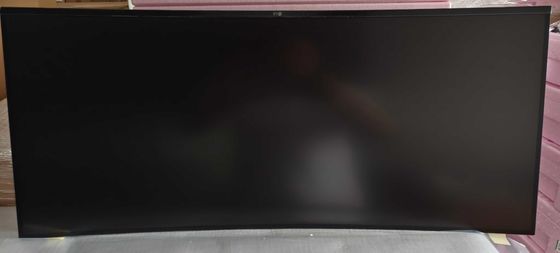

LG 34Inch LCD Display Panel with 3440×1440 Pixels 1.07B Colors and 300 cd/m² Brightness for Desktop Monitor

Name: LG 34Inch LCD Display Panel with 3440×1440 Pixels 1.07B Colors and 300 cd/m² Brightness for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LM340UW3-SSA1
Price: 180 USD
Availability: InStock

Brand Name:	LG
Model Number:	LM340UW3-SSA1
MOQ:	10pcs
Price:	USD180
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CCD/M2

Connector:

30P

Color:

1.07Billion

Contrast Ratio:

1000:1

Working Life:

30K Hours

Touch Panel:

Without

Resolution:

3400*1440pixels

Screen Size:

34inch

Packaging Details:

Industrial packing

Highlight:

30pin Desktop monitor Display Screen

LM340UW3-SSA1 Desktop monitor Display

34Inch Desktop monitor Display Screen

Product Description

LG 34-Inch Desktop Monitor Display Screen LM340UW3-SSA1

High-performance 34-inch curved display panel with 3440*1440 resolution, 1.07 billion colors, and advanced IPS technology for professional desktop monitor applications.

Key Features

34-inch diagonal a-Si TFT-LCD display
3440*1440 resolution (109 PPI)
1.07 billion display colors with 100% sRGB
IPS technology with 89° viewing angles
Curved display design (1900R)
3-side borderless bezel
Matte anti-glare surface with hard coating (3H)
10-bit color depth

Technical Specifications

Model Number	LM340UW3-SSA1
Panel Type	a-Si TFT-LCD, LCM
Active Area	799.8 * 334.8 mm
Outline Dimensions	809.55 * 351.7 * 17.2 mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Response Time	14 ms (G to G, Typical)
Refresh Rate	60Hz (120Hz with embedded MEMC circuit)
Signal Interface	eDP (4 Lanes), HBR2 (5.4G/lane), 30-pin connector
Input Voltage	10.0V (Typical)
Weight	4.35/4.57 kg (Typical/Maximum)

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Backlight System

WLED backlight system with 30,000 hours typical lifespan, 12S4P configuration, without driver.

Important Note: This model began mass production in Q2 2016 and is currently discontinued. For the latest production status and specification details, we strongly recommend contacting LG Display or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.

Recommended Application

Primarily designed for desktop monitor applications, offering superior color accuracy and wide viewing angles for professional and consumer use.
