PC LCD Module

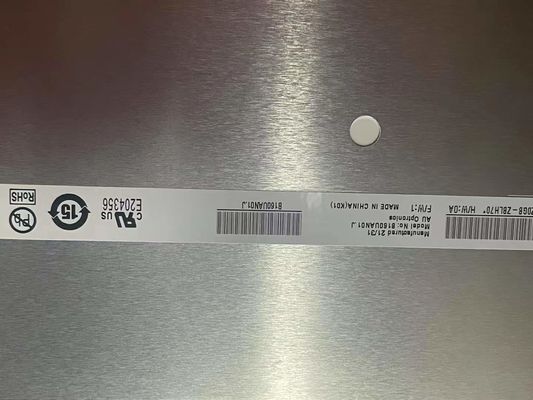

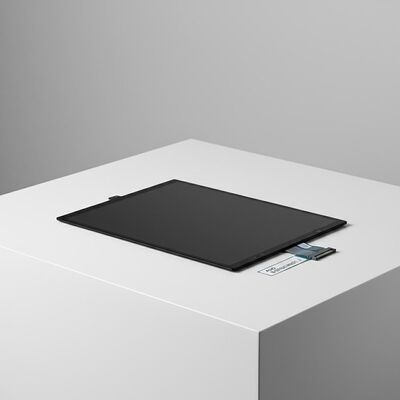

AUO 16inch Desktop Lcd Panel B160UAN01.J 1920*1200Pixels 141ppi 300CD/M2 3.3V 40pin PC LCD Module

All Category

Widescreen LCD Computer Monitors

Medical LCD Panel

Mr. pippo tian

pippo@ridafone.com

+86 13590447319

Contact Now

AUO 16inch Desktop Lcd Panel B160UAN01.J 1920*1200Pixels 141ppi 300CD/M2 3.3V 40pin PC LCD Module

Brand Name:	AUO
Model Number:	B160UAN01.J
MOQ:	10pcs
Price:	$26
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Style:

Wide Screen High Resolution 1920*1200Pixels

Brightness:

300cd

Connector:

EPD 4 Lanes,40pin

Contrast Ratio:

1000:1

Working Time:

15k Hours

Supply Ability:

3000pcs per week

Highlight:

B160UAN01.J PC LCD Module

1920*1200Pixels Desktop lcd panel

16inch Desktop lcd panel

Product Description

AUO 16inch Desktop lcd panel B160UAN01.J 1920*1200Pixels 141ppi 300CD/M2 3.3V 40pin PC LCD Module

The B160UAN01.J (Product Code: AUOAD9A) is a 16.0 inch diagonal LTPS TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: sRGB, 165Hz, WLED Backlight, With LED Driver, Reverse I/F, Glossy, G-Sync / FreeSync , 165Hz, OD, PSR2, LRR2.5, G-Sync, Free-Sync, Adaptive Sync. Based on its features, Einklcd recommend that this model be applied to Laptop, Gaming etc. According to the information stored in Einklcd this model mass production on Q2, 2022, Now this model is in production. We inputted this model's specification on Dec 26 2022 for the first time, and the latest update on Mar 31 2025. If you want to embed B160UAN01.J LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The B160UAN01.J production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand AUO

Model P/N: B160UAN01.J
Diagonal Size:16.0"

Panel Type LTPS TFT-LCD, LCM
Resolution:1920(RGB)×1200, WUXGA 141PPI

Pixel Format RGB Vertical Stripe
Active Area 344.678(W)×215.424(H) mm

Bezel Opening-
Outline (mm) 349.678×236.584×2.6 (H×V×D)

Treatment Glare (Haze 0%), Hard coating (3H)
Luminance 300 cd/m² (Typ.)

Contrast Ratio1000 : 1 (Typ.) (TM)
Viewing Angle85/85/85/85 (Max.)(CR≥10) Left / Right / Up / Down

Response 8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G)(OD) ms
Good View at SymmetryWork Mode AHVA, Normally Black, Transmissive
Color Depth16.7M 100% sRGB

Backlight: WLED , 15K hours , With LED Driver
Outline Shape Slim (PCBA Flat, T≤3.2mm)

Used for Laptop Gaming
Refresh Rate 165Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch screen: Without
Signal TypeeDP (4 Lanes) , eDP1.4 , Connector 40 pins
Voltage Supply3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C

Operating Temp.: 0 ~ 50 °C
