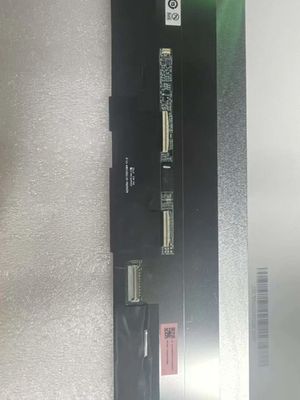

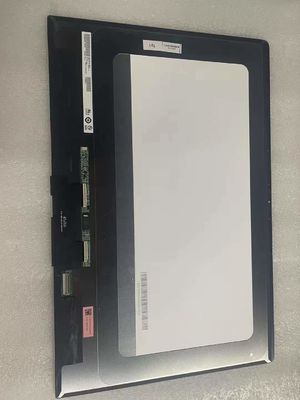

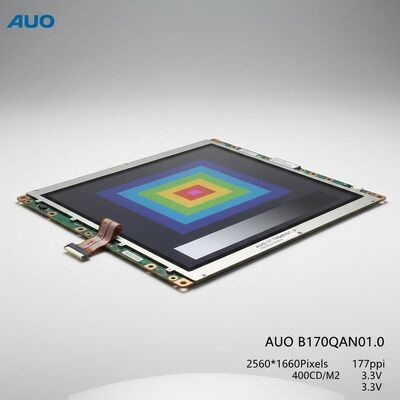

AUO 17inch Desktop Lcd Panel B170QAN01.0 2560*1600Pixels 177ppi 400CD/M2 3.3V 40pin PC LCD Module

Brand Name:	AUO
Model Number:	B170QAN01.0
MOQ:	10pcs
Price:	$26
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Style:

Wide Screen High Resolution 2560*1600Pixels

Brightness:

300cd

Connector:

EPD 4 Lanes,40pin

Contrast Ratio:

1000:1

Working Time:

15k Hours

Supply Ability:

3000pcs per week

Highlight:

B170QAN01.0 Desktop lcd panel

17inch Desktop lcd panel

2560*1600Pixels Desktop lcd panel

Product Description

AUO 17inch Desktop lcd panel B170QAN01.0 2560*1600Pixels 177ppi 400CD/M2 3.3V 40pin PC LCD Module

B170QAN01.0 (Product Code: AUO3C9B) is a 17.0" diagonal LTPS TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: DCI-P3, sRGB, 165Hz, WLED Backlight, With LED Driver, Reverse I/F, Glossy, NVIDIA G-Sync , eDP1.4, OD, PSR1, G-sync DD, Adaptive Sync. Based on its features,einklcd recommend that this model be applied to Laptop, Gaming etc. According to the information stored in einklcd this model mass production on Q1, 2022, Now this model is in production. We inputted this model's specification on Jul 14 2022 for the first time, and the latest update on Apr 7 2025. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of B170QAN01.0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand AUO

Model P/N: B170QAN01.0
Diagonal Size:17.0"

Panel Type: LTPS TFT-LCD, LCM
Resolution: 2560(RGB)×1600, WQXGA 177PPI

Pixel Format: RGB Vertical Stripe
Active Area 366.34(W)×228.96(H) mm

Bezel Opening-
Outline Size 372.836(W)×240.11(H) ×5(D) mm

Surface Glare (Haze 0%)
Brightness 400 cd/m² (Typ.)

Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode AHVA, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on Symmetry

Response Time 8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G)(OD)
Display Colors 16.7M 100% DCI-P3

Lamp Type WLED , 15K hours , With LED Driver
Frequency 165Hz

Touch Screen:Without
Shape StyleSlim (PCBA Bent, T≤3.0mm)

Application Laptop Gaming
Signal Interface eDP (4 Lanes) , eDP1.4 , 40 pins Connector
Input Voltage:3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C
