BOE 8 Inch LCD Panel NV080WXM-N41 with 1280x800 Pixels Resolution and 350CD/M2 Brightness for Tablet and Laptop

Name: BOE 8 Inch LCD Panel NV080WXM-N41 with 1280x800 Pixels Resolution and 350CD/M2 Brightness for Tablet and Laptop
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV080WXM-N41
Price: 35 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV080WXM-N41
MOQ:	10pcs
Price:	USD35/PC
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Lcm

Style:

Wide Screen High Resolution 1280*800Pixels

Brightness:

350cd

Connector:

45PIN

Contrast Ratio:

1000:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

NV080WXM-N41 Laptop lcd panel

1280*800Pixels Laptop lcd panel

45pin Tablet LCD Module

Product Description

BOE 8-Inch Laptop LCD Panel NV080WXM-N41

High-resolution 8-inch LCD module with 1280*800 pixels, 188 PPI density, and 350 cd/m² brightness. Ideal for tablet and portable device applications.

Key Features

8.0-inch diagonal a-Si TFT-LCD display
WXGA resolution (1280*800 pixels)
188 PPI pixel density for sharp imagery
350 cd/m² typical luminance
1000:1 contrast ratio
16.7 million color depth
MIPI interface with 45-pin connector
WLED backlight system

Technical Specifications

Model Number	NV080WXM-N41
Panel Type	a-Si TFT-LCD, LCM
Active Area	107.64 * 172.224 mm (W*H)
Outline Dimensions	113.72 * 184.01 * 4.43 mm (HVD)
Resolution	800(RGB)*1280, WXGA
Pixel Density	188 PPI
Luminance	350 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	80/80/80/80 (Left/Right/Up/Down)
Response Time	30 ms (Typical)
Color Depth	16.7M colors, 60% NTSC
Refresh Rate	60Hz
Interface	MIPI (4 data lanes), 45-pin connector
Operating Temperature	0°C to 50°C
Storage Temperature	-30°C to 70°C
Weight	106g (Maximum)

Application Information

This display module is specifically designed for pad and tablet applications. The panel features ADS technology with normally black mode and transmissive characteristics.

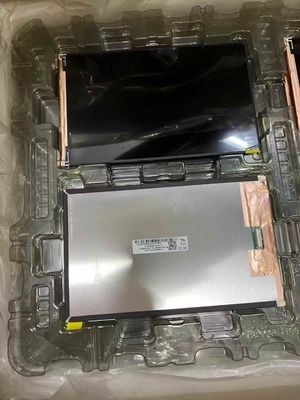

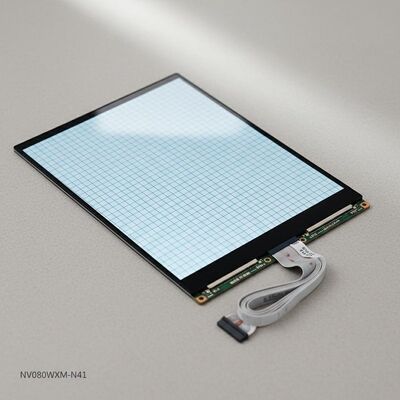

Product Images

Note: Production status information is for reference only. For the latest production details and specifications, please contact BOE or their authorized agents.
