BOE 15.6inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30pin Connector

Name: BOE 15.6inch PC LCD Module with 1920x1080 Pixels 250cd/m2 Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE156FHM-N4X
Price: 32 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE156FHM-N4X
MOQ:	10pcs
Price:	$32 or negotiation for mass order
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262K Colors

Model:

XGA

Style:

Wide Screen High Resolution 1920*1080Pixels

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

800:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

15.6inch Desktop lcd panel

30pin Desktop lcd panel

NE156FHM-N4X Desktop lcd panel

Product Description

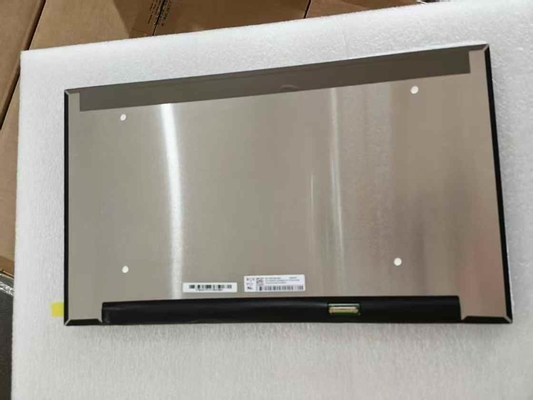

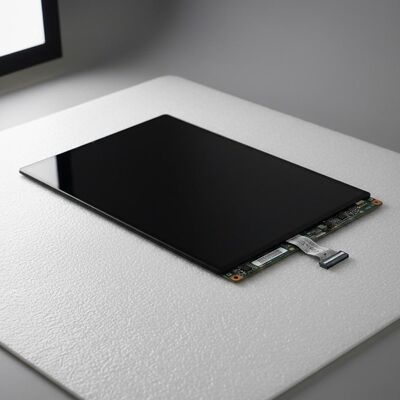

BOE 15.6-inch Desktop LCD Panel NE156FHM-N4X

1920*1080 Pixels | 141 PPI | 250 cd/m² | 3.3V | 30-pin PC LCD Module

NE156FHM-N4X (Product Code: BOE0A89) is a 15.6-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This panel is designed for laptop applications and offers excellent performance characteristics.

Key Specifications

Brand	BOE
Model P/N	NE156FHM-N4X
Diagonal Size	15.6"
Panel Type	Oxide TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD), 141 PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)*193.59(H) mm
Outline Dimensions	350.66(W)205.69(H)5.4(D) mm
Luminance	250 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Support Color	262K, 45% NTSC
Form Style	Slim (PCBA Bent, T≤3.0mm)
Frame Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	25 ms (Typ.)(Tr+Td)
Operating Mode	ADS, Normally Black, Transmissive
Light Source	WLED, 15K hours, With LED Driver
Touch Panel	Without
Interface Type	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50°C Storage Temperature: -20 ~ 60°C

Product Features

Oxide TFT-LCD technology for enhanced performance
Integrated WLED backlight system with LED driver
High-definition 1920*1080 resolution with 141 PPI density
Wide viewing angles (85/85/85/85)
Slim form factor with PCBA bent design
Antiglare hard coating (3H) surface treatment
eDP 1.2 interface with 30-pin connector
Designed for laptop and desktop applications

Production Information: Mass production began Q4 2021. Current production status should be verified directly with BOE or their authorized agents for the latest specifications and availability.
