BOE 16inch LCD Panel NE160QDM-NM4 with 2560×1600 Pixels 1250 cd/m² Brightness and 240Hz Frame Rate for Outdoor High Brightness

BOE 16inch LCD Panel NE160QDM-NM4 with 2560×1600 Pixels 1250 cd/m² Brightness and 240Hz Frame Rate for Outdoor High Brightness

BOE 16inch LCD Panel NE160QDM-NM4 with 2560×1600 Pixels 1250 cd/m² Brightness and 240Hz Frame Rate for Outdoor High Brightness

Brand Name: BOE
Model Number: NE160QDM-NM4
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
1.06b Colors
Model:
XGA
Style:
Wide Screen High Resolution 1920*1200Pixels
Brightness:
1250cd
Connector:
40PIN
Contrast Ratio:
1200:1
Working Time:
15k Hours
Packaging Details:
Industrial packing
Highlight:

1250CD/M2 Desktop lcd panel

,

NE160QDM-NM4 Desktop lcd panel

,

16inch Desktop lcd panel

Product Description
BOE 16-inch Desktop LCD Panel NE160QDM-NM4
High-performance 16-inch LCD panel featuring 2560*1600 resolution, 1250 cd/m² brightness, and advanced Mini LED backlight technology designed for outdoor, gaming, and laptop applications.
Product Overview
The NE160QDM-NM4 is a 16.0-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd. This advanced panel features an integrated Mini LED backlight system with LED driver, delivering exceptional brightness and color performance for demanding applications.
Key Features
  • Ultra High Brightness: 1250 cd/m² for outdoor visibility
  • High Resolution: 2560*1600 WQXGA with 188 PPI pixel density
  • Wide Color Gamut: 100% DCI-P3 coverage with 1.06B colors
  • High Refresh Rate: 240Hz with embedded MEMC circuit
  • Advanced Backlight: Mini LED technology with 15,000-hour lifespan
  • HDR1000 certification for superior contrast and dynamic range
  • G-Sync and FreeSync compatibility for smooth gaming
  • Anti-glare, hard coating (3H) surface treatment
Technical Specifications
Brand & ModelBOE NE160QDM-NM4
Panel TypeOxide TFT-LCD, LCM
Diagonal Size16.0 inches
Resolution2560(RGB)*1600 (WQXGA)
Pixel Density188 PPI
Active Area344.678 * 215.424 mm
Outline Dimensions349.68 * 224.42 * 4.6 mm
Brightness1250 cd/m² (Typical)
Contrast Ratio1200:1 (Typical)
Response Time9ms (Typical, Tr+Td)
Viewing Angle89/89/89/89 (CR≥10)
Refresh Rate240Hz (60Hz Input with MEMC)
InterfaceeDP (4 Lanes), eDP1.4b, HBR2
Power Supply3.3V (Typical)
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Application Areas
This high-performance display panel is specifically designed for laptop computers, outdoor high-brightness applications, and gaming displays where superior visual performance and reliability are essential.

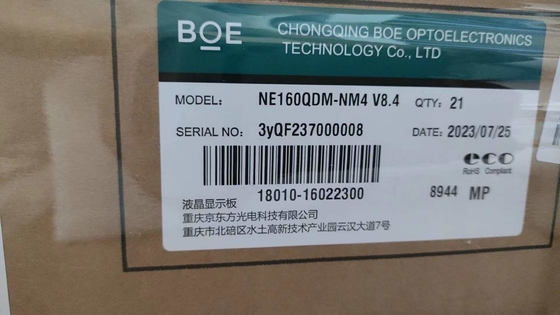

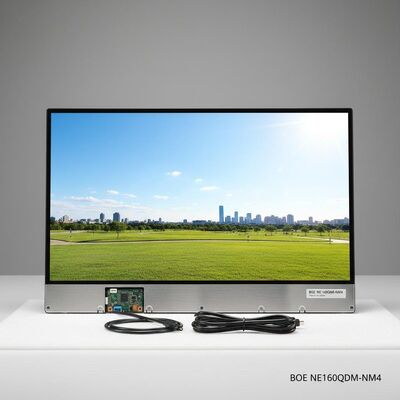

Product Images
BOE 16inch LCD Panel NE160QDM-NM4 with 2560×1600 Pixels 1250 cd/m² Brightness and 240Hz Frame Rate for Outdoor High Brightness 0 BOE 16inch LCD Panel NE160QDM-NM4 with 2560×1600 Pixels 1250 cd/m² Brightness and 240Hz Frame Rate for Outdoor High Brightness 1
Production information is for reference only. For the latest production status and detailed specifications, please contact BOE or their authorized agents directly.
