| Brand Name: | BOE |
| Model Number: | NE160WUM-N61 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

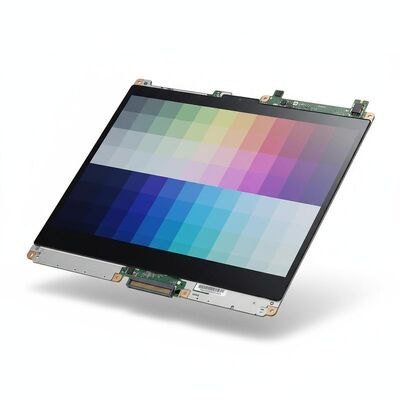

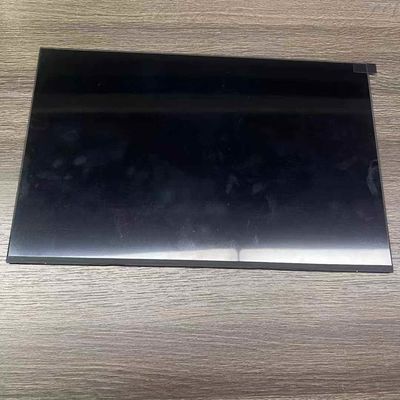

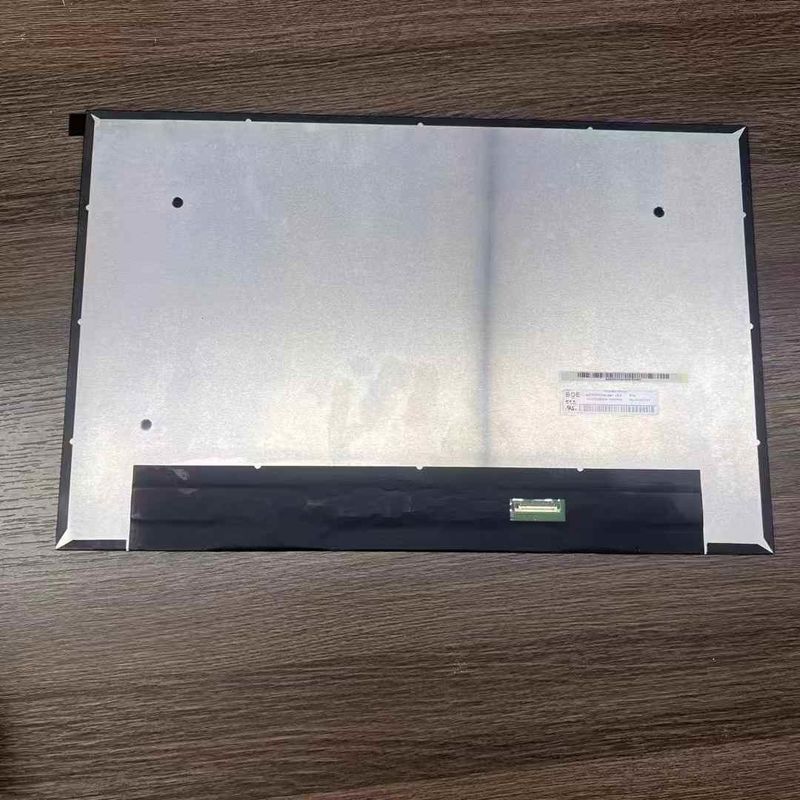

BOE lcd model NE160WUM-N61 laptop lcd panel 16 Inch 1920*1200Pixels PC LCD Module 30PIN
The NE160WUM-N61 (Product Code: BOE0A02) is a 16.0 inch diagonal Oxide TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.4b. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q2, 2022, Now this model is in production. We inputted this model's specification on Jul 8 2022 for the first time, and the latest update on Aug 22 2024. If you want to embed NE160WUM-N61 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The NE160WUM-N61 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand BOE
Model P/N:NE160WUM-N61
Diagonal Size:16.0"
Panel Type: Oxide TFT-LCD, LCM
Resolution:1920(RGB)×1200, WUXGA 141PPI Pixel
Format RGB Vertical Stripe
Active Area 344.68(W)×215.42(H) mm
Bezel Opening-
Outline(mm)350.38 × 226.17 × 4.6 (H×V×D)
Treatment Antiglare, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio1500 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response 30 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode ADS, Normally Black, Transmissive
Color Depth 16.7M 100% sRGB
Backlight 11S6P WLED , 15K hours , With LED Driver
Outline ShapeSlim (PCBA Bent, T≤3.0mm)
Used for Laptop
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
|
