BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface

Name: BOE LM140GF2L01 14 Inch 2560*1600 Pixels PC LCD Module with 400 cd/m² Brightness and 40PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LM140GF2L01
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	LM140GF2L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2560*1600 Ixels

Style:

FHD 30P

Brightness:

400 CCD M2

Color:

16.7M

Contrast Ratio:

1200 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

14 Inch PC LCD Module

LM140GF2L01 PC LCD Module

40PIN PC LCD Module

Product Description

BOE LM140GF2L01 14-Inch LCD Display Module

High-resolution 14.0-inch WQXGA display panel with 2560*1600 pixel resolution, designed for laptop applications with advanced Oxide TFT-LCD technology.

Key Features

2560*1600 WQXGA resolution (215 PPI)
100% sRGB color gamut supporting 16.7 million colors
400 cd/m² typical luminance with 1200:1 contrast ratio
eDP 1.4 interface with 40-pin connector
WLED backlight system with integrated LED driver
Wide viewing angles: 89/89/89/89 (Left/Right/Up/Down)
Multiple refresh rate support including 60Hz, 120Hz, and 240Hz modes
Antiglare matte surface treatment (Haze 25%)

Technical Specifications

Brand & Model	BOE LM140GF2L01
Panel Type	Oxide TFT-LCD with LCM
Diagonal Size	14.0 inches
Active Area	301.824mm * 188.64mm
Outline Dimensions	306.82mm * 205.24mm * 2.4mm
Response Time	25ms (Typical)
Interface	eDP (4 Lanes), eDP1.4, 40-pin connector
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Backlight System	WLED [9S6P], 15,000 hours lifespan
Designed For	Laptop applications

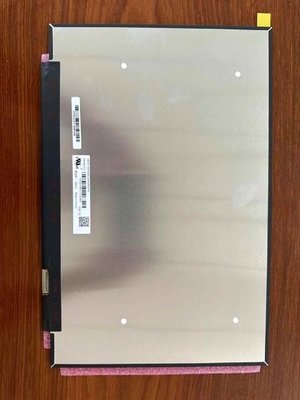

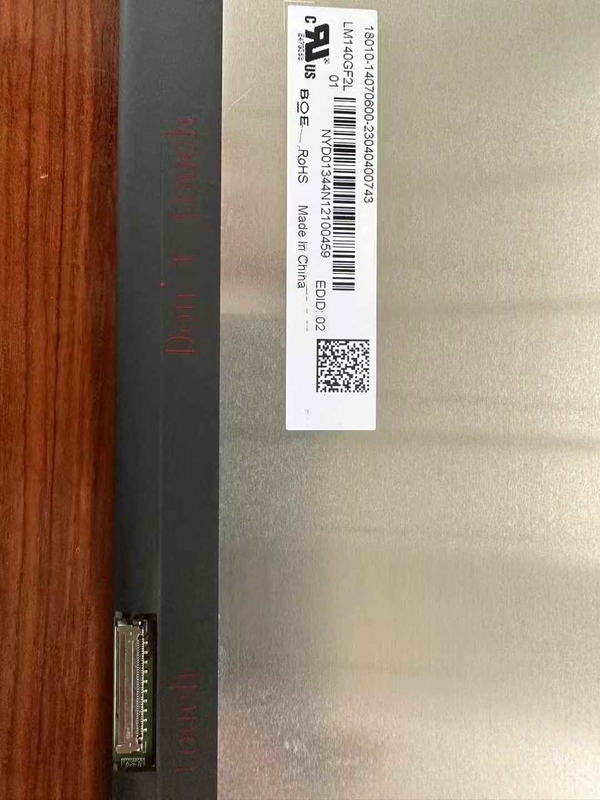

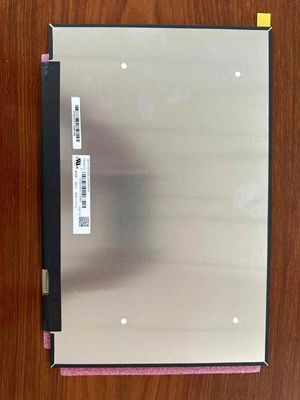

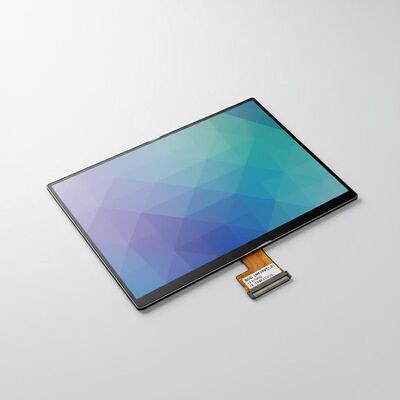

Display Images

Production Note: This model entered mass production in Q1 2021 and is currently in production. For integration into your products, we recommend contacting BOE or their authorized agents for the latest production status and detailed specifications.
