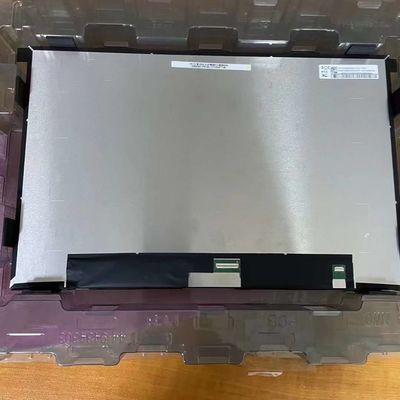

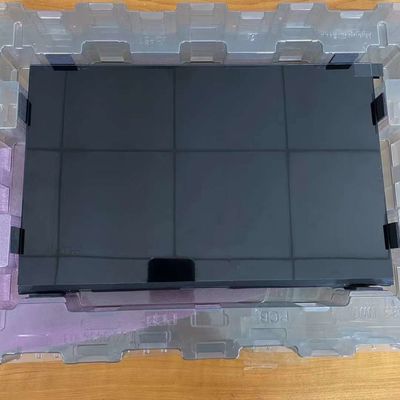

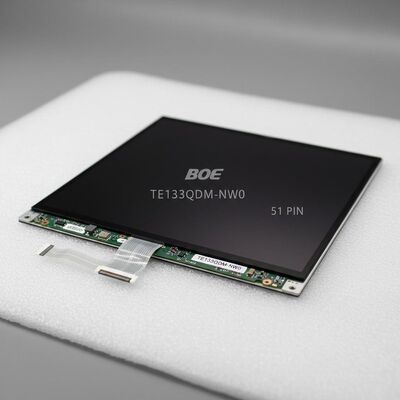

BOE 13.3inch LCD Screen TE133QDM-NW0 with 2560x1600 Pixels 400cd/m2 Brightness and 51PIN Connector

BOE 13.3inch LCD Screen TE133QDM-NW0 with 2560x1600 Pixels 400cd/m2 Brightness and 51PIN Connector

BOE 13.3inch LCD Screen TE133QDM-NW0 with 2560x1600 Pixels 400cd/m2 Brightness and 51PIN Connector

Brand Name: BOE
Model Number: TE133QDM-NW0
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass
Brightness:
400ccd/m2
Resolution:
2560*1600pixels
Contrast Ratio:
1500:1
Color:
25.6M
Working Life:
15k Hours
Connector:
51P
Touch Panel:
Without
Packaging Details:
Industrial packing
Highlight:

BOE Pad Laptop Display

,

13.3inch Pad Laptop Display

,

TE133QDM-NW0 LCD Screen

Product Description
BOE 13.3-inch Pad Laptop Display TE133QDM-NW0
High-resolution 13.3-inch LCD screen with 2560*1600 WQXGA resolution, 227 PPI pixel density, and 51-pin eDP interface. Designed for laptop and tablet applications with advanced display technology.
Product Overview
TE133QDM-NW0 (Product Code: BOE0B75) is a 13.3-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This panel offers excellent color reproduction and viewing performance for professional laptop applications.
Key Features
  • 13.3-inch WQXGA display (2560*1600 resolution)
  • 227 PPI pixel density for sharp image quality
  • 100% sRGB color gamut with 10-bit color depth
  • 400 cd/m² typical luminance
  • 1500:1 contrast ratio
  • Wide viewing angles: 89/89/89/89 (Left/Right/Up/Down)
  • Multiple refresh rate options: 90Hz, 120Hz, 240Hz
  • eDP 1.4b interface with 51-pin connector
  • WLED backlight with 15,000-hour lifespan
Technical Specifications
BrandBOE
Model P/NTE133QDM-NW0
Diagonal Size13.3 inches
Panel Typea-Si TFT-LCD, LCM
Resolution2560(RGB)*1600 (WQXGA)
Pixel Density227 PPI
Active Area286.08*178.8 mm
Outline Size291.2*188.02*4.41 mm
Luminance400 cd/m² (Typical)
Contrast Ratio1500:1 (Typical)
Response Time20 ms (Typical, Tr+Td)
Color Depth1.07B colors (10-bit)
Refresh Rate90Hz standard, up to 240Hz with MEMC
InterfaceeDP 1.4b (4 Lanes), 51-pin connector
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Voltage Supply3.3V (Typical)
Display Technology
Features ADS (Advanced Super Dimension Switch) technology with normally black, transmissive operation. This IPS-family technology provides wide viewing angles and excellent color consistency across the entire display surface.
Application
Primarily designed for laptop computers and tablet devices requiring high-resolution displays with professional color accuracy and multiple refresh rate capabilities.
BOE 13.3inch LCD Screen TE133QDM-NW0 with 2560x1600 Pixels 400cd/m2 Brightness and 51PIN Connector 0
Production status information is for reference only. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications.
