| Brand Name: | BOE |
| Model Number: | NE140QDM-K61 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,Western Union, MoneyGram |

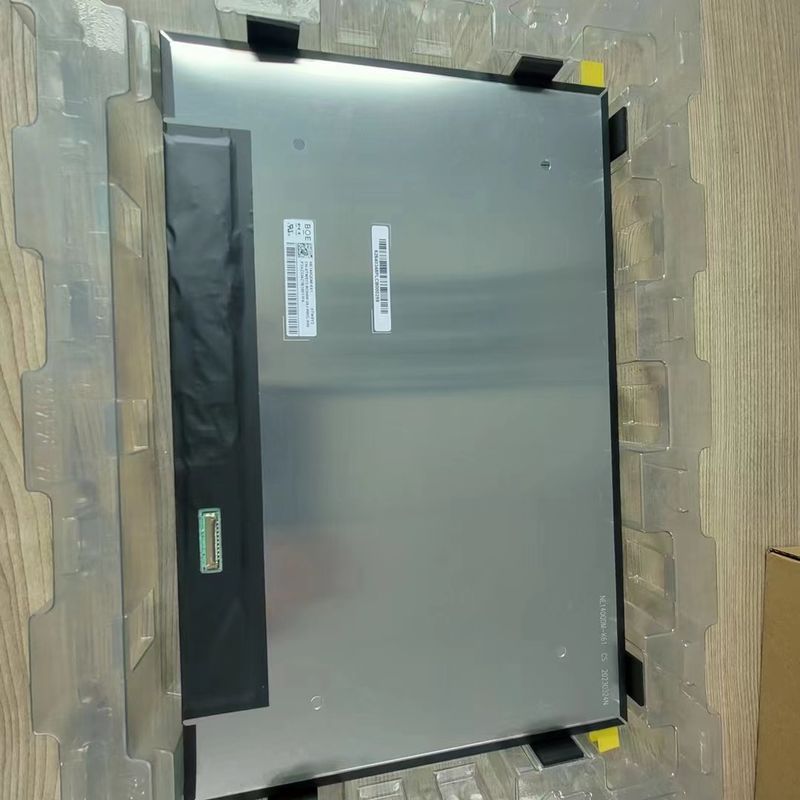

BOE 14inch Pad& laptop display model NE140QDM-K61 lcd screen 2560x1600 Pixels 215PPI 40PIN
Brand:Innolux
Model P/N: N140QDM-K61
Diagonal Size:14.0"
Panel Type: Oxide TFT-LCD, LCM
Resolution: 2560(RGB)×1600, WQXGA 215PPI
Pixel Format: RGB Vertical Stripe
Active Area: 301.824(W)×188.64(H) mm
Bezel Opening-
Outline Dim.306.594(W)×198.396(H)×4(D)
Treatment Antiglare, Hard coating (3H)
Luminance: 400 cd/m² (Typ.)
Contrast Ratio1200:1 (Typ.) (TM)
View Direction Symmetry
Response Time 30ms (Typ.)(Tr/Td)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode: AAS, Normally Black, Transmissive
Support Color16.7M 100% DCI-P3
Light Source: WLED [10S6P] , 15K hours , With LED Driver
Form Style: Slim (PCBA Bent, T≤3.0mm)
Designed For Laptop
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: eDP (2 Lanes) , eDP1.4 , 40 pins Connector
Power Supply: 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;
Storage Temperature: -20 ~ 60 °C
NE140QDM-K61 (Product Code: BOE0B1E) is a 14.0" diagonal Oxide TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , touchscreen In-Cell Touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, With Touch, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.4b, DELL DPN: TW8Y2, LBL, PSR2, djust backlight brightness with DC mode. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q1, 2023, Now this model is in production. We inputted this model's specification on Jun 14 2023 for the first time, and the latest update on Oct 27 2023. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NE140QDM-K61. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
