IVO M140NWFA R3 14inch LCD Display Panel 1920x1080 Pixels 300cd/m2 Brightness 30PIN Connector Desktop LCD Monitor

Name: IVO M140NWFA R3 14inch LCD Display Panel 1920x1080 Pixels 300cd/m2 Brightness 30PIN Connector Desktop LCD Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M140NWFA R3
Price: 30.00 USD
Availability: InStock

Brand Name:	IVO
Model Number:	M140NWFA R3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

1200:1

Color:

16.7M

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

M140NWFA R3 Desktop LCD Monitor

14inch Laptop LCD Display

1920x1080Pixels Laptop LCD Display

Product Description

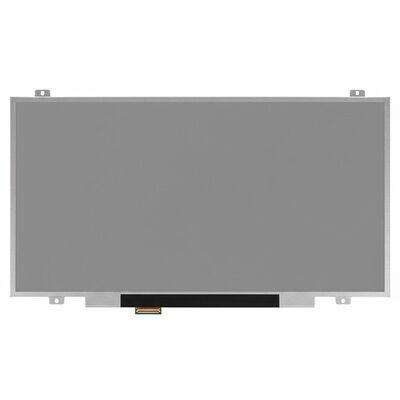

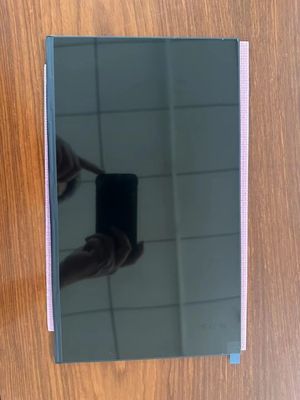

IVO M140NWFA R3 14-inch Laptop LCD Display

High-resolution 14-inch desktop laptop LCD display with 1920*1080 Full HD resolution, 157 PPI pixel density, and 30-pin eDP interface.

Product Overview

The IVO M140NWFA R3 (Product Code: IVO8C41) is a 14.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system with LED driver. This industrial-grade display offers excellent performance with wide viewing angles and high contrast ratio, designed for laptop and desktop monitor applications.

Key Features

14.0-inch Full HD 1920*1080 resolution
157 PPI high pixel density for sharp image quality
IPS technology with 85/85/85/85 viewing angles
1200:1 contrast ratio and 300 cd/m² luminance
WLED backlight with 15,000 hours lifespan
eDP 1.2 interface with 30-pin connector
Antiglare hard coating (3H) surface treatment
Slim profile design with PCBA bent configuration

Technical Specifications

Brand	IVO
Model P/N	M140NWFA R3
Diagonal Size	14.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD)
Active Area	309.31 * 173.99 mm
Outline Dimensions	315 * 185.84 * 4.4 mm (HVD)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	30 ms (Typical, Tr+Td)
Color Depth	16.7M colors, 91% sRGB
Refresh Rate	60Hz
Interface	eDP (2 Lanes), eDP1.2, 30-pin connector
Voltage Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	Max. 1.5G (14.7 m/s²)

Production Note: This model entered mass production in Q4 2019 and is currently in production. For the latest production status and detailed specifications for integration into your products, please contact IVO or their authorized distributors directly.
