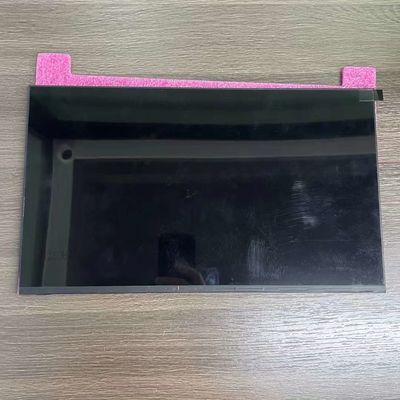

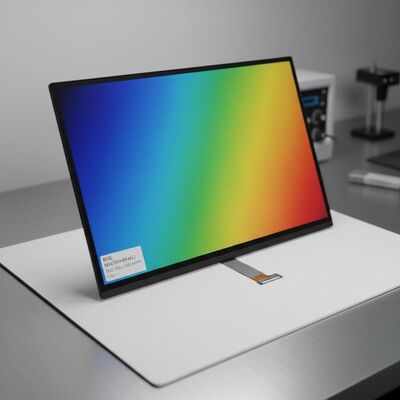

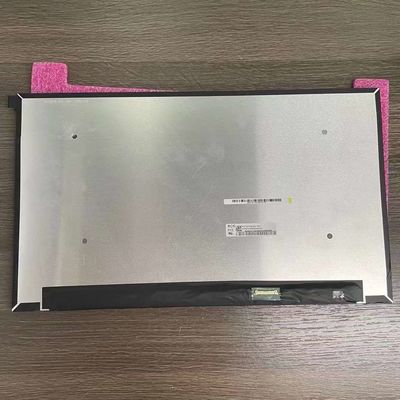

BOE 15.6inch LCD Display Panel with 1920x1080 Pixels 500cd/m2 Brightness and 30PIN Connector TFT-LCD Module

Name: BOE 15.6inch LCD Display Panel with 1920x1080 Pixels 500cd/m2 Brightness and 30PIN Connector TFT-LCD Module
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV156FHM-N52
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV156FHM-N52
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

500ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

1200:1

Color:

1.07B

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

30PIN laptop lcd display

NNV156FHM-N52 laptop lcd display

15.6inch laptop lcd display

Product Description

BOE 15.6-inch Laptop LCD Display

Model NNV156FHM-N52 featuring 1920*1080 Full HD resolution with 141 PPI pixel density, 1200:1 contrast ratio, and 30-pin eDP interface.

Product Overview

The NV156FHM-N52 (Product Code: BOE0847) is a 15.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel features an integral WLED backlight system with LED driver and does not include a touch screen.

WLED Backlight with LED Driver
Reverse Interface, 10-bit color depth
Matte surface with hard coating (3H)
eDP 1.4b interface protocol
Recommended for laptop applications

Technical Specifications

Brand	BOE
Model P/N	NV156FHM-N52
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD)
Pixel Density	141 PPI
Active Area	344.16*193.59 mm
Outline Size	350.66216.252.6 mm
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	30 ms (Typ.)
Color Depth	1.06B (10-bit)
Color Gamut	95% sRGB
Backlight	10S6P WLED, 15K hours
Refresh Rate	60Hz (with 120Hz MEMC options)
Interface	eDP 1.4b, 30-pin connector
Voltage Supply	3.3V (Typ.)

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Maximal Vibration	1.5G (14.7 m/s²)

Refresh Rate Options

120Hz (60Hz Input): Embedded MEMC Circuit
120Hz+120Hz: 120Hz Panel + 120Hz Backlight
240Hz (60Hz Input): Embedded MEMC Circuit

Production Information: Mass production began Q3 2019. This model is currently in production. For the latest production status and specification details, we strongly recommend contacting BOE or their authorized agents directly.
