BOE 19.5 Inch Laptop LCD Module MV195WGM-N10 with 1440x900 Pixels Resolution and 250 cd/m² Brightness

BOE 19.5 Inch Laptop LCD Module MV195WGM-N10 with 1440x900 Pixels Resolution and 250 cd/m² Brightness

BOE 19.5 Inch Laptop LCD Module MV195WGM-N10 with 1440x900 Pixels Resolution and 250 cd/m² Brightness

Brand Name: BOE
Model Number: MV195WGM-N10
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass
Brightness:
250ccd/m2
Resolution:
1440*900pixels
Contrast Ratio:
1000:1
Color:
16.7M
Working Life:
30k Hours
Connector:
30P
Touch Panel:
Without
Working Voltage:
5.0V
Packaging Details:
Industrial packing
Highlight:

19.5 Inch Laptop Lcd Module

,

MV195WGM-N10 Laptop Lcd Module

,

30 Pin Pc Lcd Module

Product Description
BOE 19.5 Inch Laptop LCD Module MV195WGM-N10
19.5 Inch LCD Module with 1440*900 WXGA+ Resolution, 30 PIN Interface, 5.0V Operation, 250 cd/m² Brightness, and 87 PPI Pixel Density
Product Overview
The MV195WGM-N10 is a 19.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system. This industrial-grade LCD module is designed for applications including desktop monitors and features robust environmental specifications.
Key Specifications
BrandBOE
Model P/NMV195WGM-N10
Diagonal Size19.5"
Panel Typea-Si TFT-LCD, LCM
Resolution1440(RGB)*900, WXGA+ 87PPI
Active Area418.608(W)*262.35(H) mm
Outline Dimensions444.22(W)*286.6(H)*10.7(D) mm
Luminance250 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Response Time14ms (Typ.)(G to G)
Operating ModeADS, Normally Black, Transmissive
Interface TypeLVDS (2 ch, 8-bit) 30 pins Connector
Power Supply5.0V (Typ.)
Weight1.64Kgs (Typ.)
Technical Features
  • WLED Backlight System (16S2P configuration)
  • 30,000 hours backlight lifetime
  • Reverse interface technology
  • Matte surface treatment with anti-glare (Haze 25%)
  • Hard coating (3H hardness)
  • Supports 16.7M colors with 72% NTSC color gamut
  • 60Hz frame rate
  • Without touch panel
  • ES 8.0 compliant
Environmental Specifications
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 60°C
Maximal Vibration Level1.5G (14.7 m/s²)

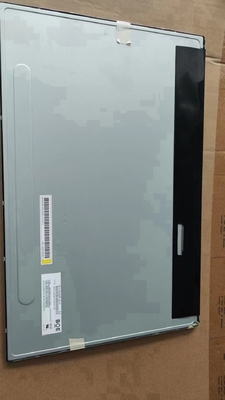

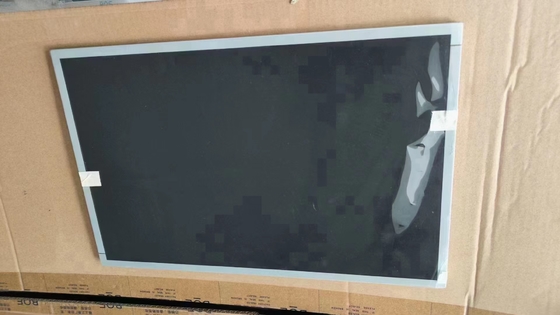

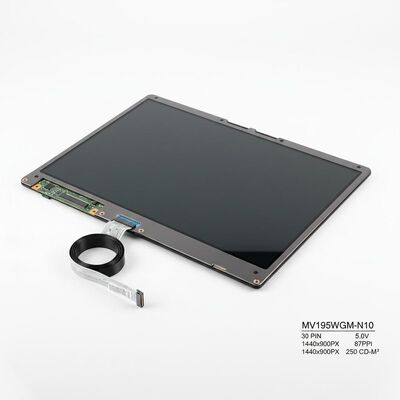

Product Image
BOE 19.5 Inch Laptop LCD Module MV195WGM-N10 with 1440x900 Pixels Resolution and 250 cd/m² Brightness 0
Important Note: This model entered mass production in Q3 2015 with last shipment in Q3 2022 and is now discontinued. We strongly recommend contacting BOE or their authorized agents for the latest production status and specification details before considering this model for integration into your products. The information provided is for reference only and should not be used as the sole basis for decision-making.
