| Brand Name: | BOE |
| Model Number: | TV119FHB-NW0 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

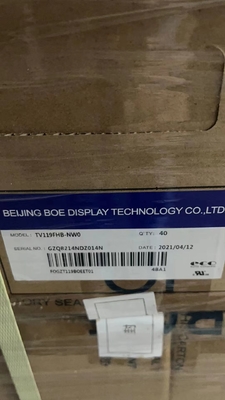

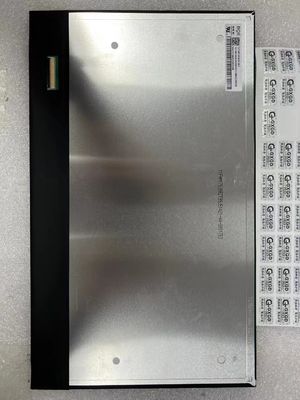

BOE 11.9inch Laptop LCD Module TV119FHB-NW0 30PIN 1920x1080 Pixels 185PPI
The TV119FHB-NW0-DBA0 is a 11.9 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by Einklcd in the following: Wide Color Gamut, DCI-P3, sRGB, Glossy . Based on its features, Einklcd recommend that this model be applied to Laptop etc.Suggest ILI6147 driver IC. According to the information stored in Einklcd this model mass production on Q1, 2021, Now this model is in production. We inputted this model's specification on Aug 16 2021 for the first time, and the latest update on Aug 4 2022. If you want to embed TV119FHB-NW0-DBA0 CELL in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The TV119FHB-NW0-DBA0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand
BOE
Model P/N:
TV119FHB-NW0-DBA0
Diagonal Size:11.9"
Panel Type: a-Si TFT-LCD, CELL , FOB
Resolution:
1920(RGB)×1080, FHD 185PPI Pixel
Format: RGB Vertical Stripe
Active Area: 263.232(W)×148.068(H) mm
Bezel Opening-
Outline: (mm)267.832 × 155.768 (H×V×D)
Treatment:Glare (Haze 0%)
Luminance:0 cd/m²
Contrast Ratio: 1000 : 1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 30 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode: HADS, Normally Black, Transmissive
Glass Thickness:0.40+0.50 mm
It's Depth of CF Depth + Array Depth
CELL Depth = CF Depth + Array DepthTransmissivity-
Color Depth:16.7M 90% NTSC
Backlight: No B/L
Outline Shape-Used forLaptop
Refresh Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC
Circui
Touchscreen: Without
Driver IC : list Suggest COG ILI6147
Signal Typee: DP (2 Lanes) , 30 pins Connector
Max. RatingsStorage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
|
|
