17 Inch PC LCD Module with 1280x1024 Resolution and 16.7M Color Display

Brand Name:	auo
Model Number:	DV430FHM-NN0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

400ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

1200:1

Color:

16.7M

Working Life:

30k Hours

Connector:

51P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

30 Pin Lcd Display Panel

1280x1024 PC LCD Module

16.7M PC LCD Module

Product Description

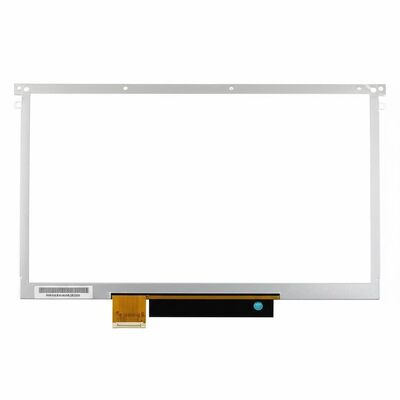

M170ETN01.1 17-Inch LCD Display Module

High-performance 17-inch AUO LCD display module featuring 1280*1024 SXGA resolution, 250 cd/m² brightness, and 16.7 million color support. Ideal for industrial and professional applications requiring reliable visual performance.

Key Features

Flat spray mask design eliminates screen warping for perfect planar surface
High-quality black protective colloid enables full-angle LED display
Seamless connection technology for uninterrupted visual experience
Special mask design enhances contrast ratio and viewing angles
Signal and power backup systems for reliable operation
Brightness and chromaticity calibration for consistent performance
Compatible with cabinets from different production batches
Super high refresh rate eliminates ghosting, twisting, and smearing
Front serviceable design simplifies maintenance and saves space
16-bit grey grade processing for natural color transitions
Comfortable viewing experience reduces eye fatigue during extended use

Technical Specifications

Manufacturer	AUO
Model Name	M170ETN01.1
Screen Size	17.0 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1280(RGB) * 1024 (SXGA)
Pixel Arrangement	RGB Vertical Stripe
Active Area	337.92 * 270.336 mm (H*V)
Outline Dimensions	358.5 * 296.5 * 10.8 mm (HVD)
Bezel Area	341.72 * 274.14 mm (H*V)
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/80/80 (Typical, CR ≥10)
Response Time	3.8/1.2 ms (Typical, Tr/Td)
Optimal Viewing	6 o'clock position
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M colors, 72% (CIE1931)
Backlight	9S4P WLED, 30K hours lifespan, No Driver
Weight	1.27 kg (Typical)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector, 30 pins
Voltage Supply	5.0V (Typical)
Temperature Range	Storage: -20°C to 60°C, Operating: 0°C to 50°C
