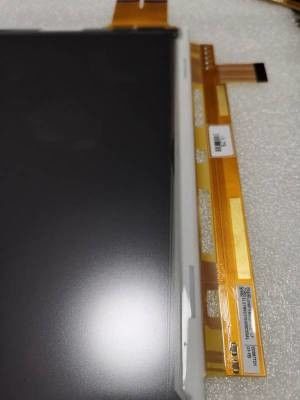

EPD E Ink LCD Display , 101.8 × 138.4mm ED060SCM PCAP Touch Screen

PCAP Touch Screen E Ink Display , 101.8 × 138.4mm ED060SCM E Ink Devices

Feature Of LCD Display Module

l High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.

l Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.

l High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.

l Good heat dissipation with fans and using meanwell power supply, long lifespan.

l You can adjust the resolution by change modules directly, this can save your cost and labor.

l 250x250mm module, compatible with various pitches such as PH2.6/PH2.9/PH3.9, high selectivity

l High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble

l Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.

l High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness 1000~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios

• PVI
• Model Name ED060SCM

• Screen Size 6.0 inch
• Screen TypeEPD, EPD

• Pixel Number600×800 (SVGA)
• ArrangementRectangle

• Active Area(mm)90.6 × 122.4 (H×V)
• Outline(mm)101.8 × 138.4 (H×V×D)

• Viewing Angle-
• Response-

• Color DepthGrayscale
• BacklightNo B/L

• MassTBD
• Used for

• Refresh Rate-
• TouchscreenPCAP

• Signal Type
• Parallel Data (8-bit) , Connector , 34 pins

• Voltage Supply
• 3.0V (Typ.)

• Max. Ratings
• Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 50 °C
•
