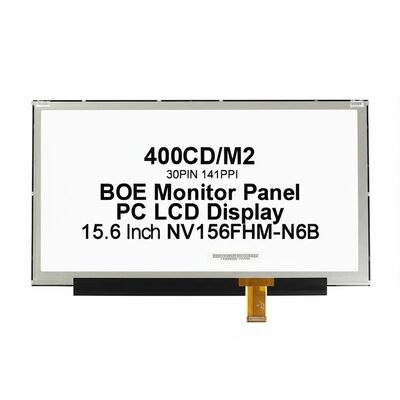

400CD/M2 30PIN 141PPI BOE Monitor Panel PC LCD Display 15.6 Inch NV156FHM-N6B

400CD/M2 30PIN 141PPI BOE Monitor Panel PC LCD display 15.6 Inch NV156FHM-N6B A-Si TFT LCD Panel

NV156FHM-N6B is a 15.6" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte, AMD FreeSync , PSR, BIST, CABC, eDP1.3. Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in Einklcd this model mass production on Q2, 2020, Now this model is in production.  We inputted this model's specification on Jun 18 2021 for the first time, and the latest update on Feb 21 2022. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NV156FHM-N6B. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer
BOE
Model Name
NV156FHM-N6B

Screen Size
15.6 inch
Screen Type
LCM , a-Si TFT-LCD

Pixel Number
1920(RGB)×1080 (FHD) 141PPI
Arrangement
RGB Vertical Stripe

Active Area(mm)
344.16 × 193.59 (H×V)
Outline(mm)
350.66 × 205.24 × 5 (H×V×D)

Bezel Area(mm)
-
Treatment
Antiglare, Hard coating (3H)

Luminance
400 cd/m² (Typ.)
Contrast Ratio
1500 : 1 (Typ.) (TM)

Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
30 (Typ.)(Tr+Td) ms

Good View at
Symmetry
Work Mode
HADS, Normally Black, Transmissive

Color Depth
16.7M 100% sRGB
Backlight
11S4P WLED , 15K hours , With LED Driver

Outline Shape
Slim (PCBA Bent, T≤3.0mm)
Used for

Refresh Rate
60Hz
Touchscreen
Without

Signal Type
eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector

Voltage Supply
3.3V (Typ.)

Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
