BOE 15.6 Inch LCD Display Panel NE156FHM-NS0 TFT-LCD Module with 1920×1080 Pixels and 300 cd/m² Brightness

Name: BOE 15.6 Inch LCD Display Panel NE156FHM-NS0 TFT-LCD Module with 1920×1080 Pixels and 300 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE156FHM-NS0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE156FHM-NS0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

16.7m

Contrast Ratio:

800:1

Working Life:

15K Hours

Resolution:

1920*1080pixels

Voltage Supply:

3.3V

Signal Type:

LCM

Packaging Details:

Industrial packing

Highlight:

BOE LCD Display Panel

141PPI LCD Display Panel

15.6 Inch LCD panel 3.3V

Product Description

BOE 141PPI LCD Display Panel NE156FHM-NS0

15.6 Inch FHD LCD Panel with 1920*1080 Resolution

The BOE NE156FHM-NS0 (Product Code: BOE0A06) is a premium 15.6-inch diagonal Oxide TFT-LCD display panel featuring Full HD resolution with 141 pixels per inch density. This advanced display module integrates a WLED backlight system with LED driver and operates on 3.3V power supply with a 30-pin eDP interface.

Key Features

15.6-inch diagonal display with 1920*1080 Full HD resolution
141 PPI pixel density for sharp, detailed imagery
Oxide TFT-LCD technology with ADS operating mode
Integrated WLED backlight system with LED driver
eDP 1.2 interface with 30-pin connector
300 cd/m² typical luminance
800:1 contrast ratio with 25ms response time
Wide viewing angles: 85/85/85/85 (CR≥10)
Antiglare, hard coating (3H) surface treatment

Technical Specifications

Brand	BOE
Model	NE156FHM-NS0 (BOE0A06)
Display Type	Oxide TFT-LCD, LCM
Diagonal Size	15.6 inch
Resolution	1920(RGB)*1080 [FHD]
Pixel Density	141 PPI
Active Area	344.16(H)*193.59(V) mm
Outline Dimensions	350.66(H)216.15(V)3.2(D) mm
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Response Time	25ms (Typ.)
Viewing Angle	85/85/85/85 (Typ.)
Color Support	16.7M colors, 45% NTSC
Interface	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins
Power Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Backlight	WLED [9S5P], 15K hours, With LED Driver
Frame Rate	60Hz

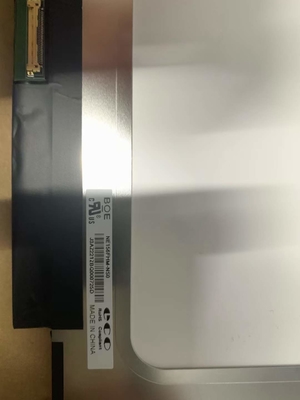

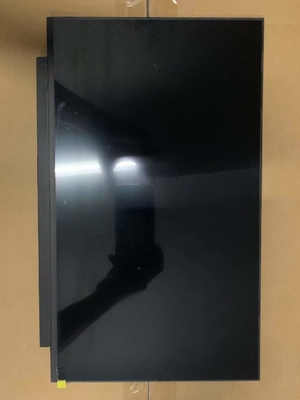

Product Images

Note: This model entered mass production in Q3 2021 and is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors directly. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
