BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080

BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080

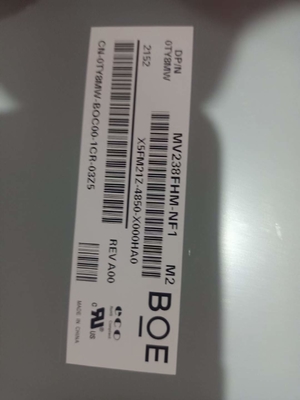

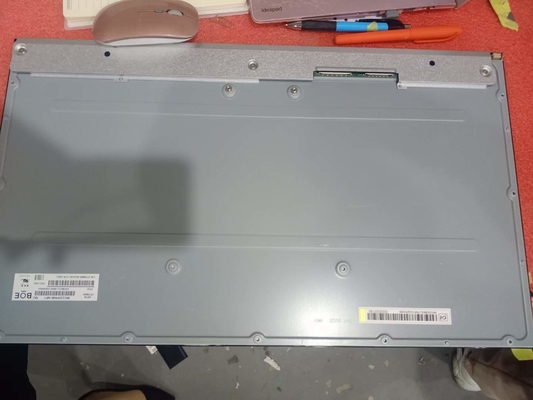

BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080

Large Image :  BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: MV238FHM-NF1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Brightnerss: 350CD/M2 Connector: 92PIN
Color: 16.7M Contrast Ratio: 1000:1
Working Life: 30K Hours Resolution: 1920*1080pixels
Voltage Supply: 5.0V Signal Type: LCM
High Light:

350CD/M2 92PIN LCD display panel

,

LCD display panel MV238FHM-NF1

,

23.8Inch Desktop Monitor Display Panel


BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 350CD/M2 92PIN



The MV238FHM-NF1 is a 23.8 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , 3-side Borderless; TUV low blue light panel. Based on its features, einklcd recommend that this model be applied to Desktop Monitor, Gaming etc. According to the information stored in einklcd this model mass production on Q1, 2022, Now this model is in production. We inputted this model's specification on Dec 16 2021 for the first time. If you want to embed MV238FHM-NF1 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The MV238FHM-NF1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Manufacturer
BOE
Model Name
MV238FHM-NF1
Screen Size
23.8 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1920(RGB)×1080 (FHD) 92PPI
Arrangement
RGB Vertical Stripe
Active Area(mm)
527.04 × 296.46 (H×V)
Outline(mm)
535 × 313 × 13.7 (H×V×D)
Bezel Area(mm)
-
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
350 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
5 (Typ.)(G to G) ms
Good View at
Symmetry
Work Mode
ADS, Normally Black, Transmissive
Color Depth
16.7M 100% sRGB
Backlight
20S4P WLED , 30K hours , No Driver
Mass
2.20Kgs (Typ.)
Used for

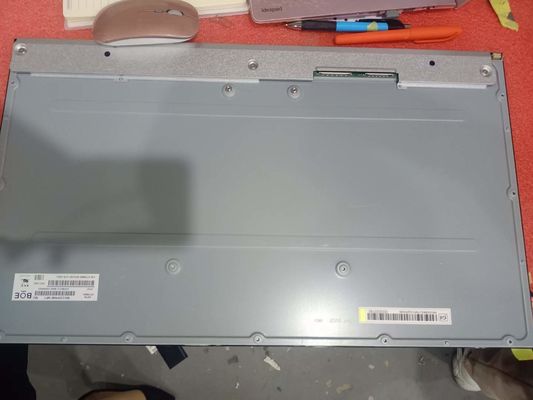

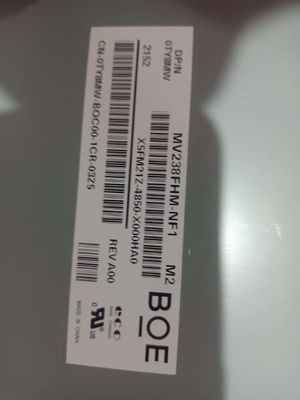

BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 0 BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 1
Refresh Rate
167Hz
Touchscreen
Without
Signal Type
LVDS (4 ch, 8-bit) , Connector 92 pins
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

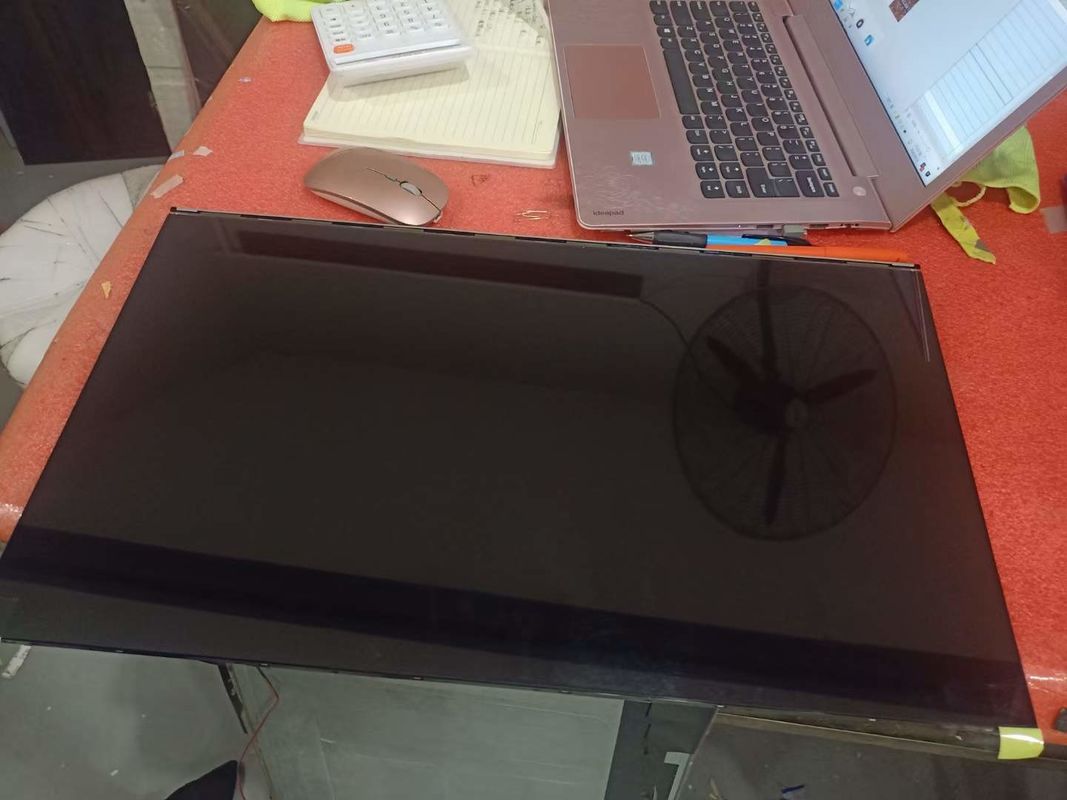

BOE 92PPI Desktop Monitor Module 23.8Inch MV238FHM-NF1 1920×1080 2
