15.6 Inch 300CD/M2 PC LCD Module with 1920x1080pixels Resolution B156HAN02.0

Name: 15.6 Inch 300CD/M2 PC LCD Module with 1920x1080pixels Resolution B156HAN02.0
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B156HAN02.0
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B156HAN02.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

800:1

Working Life:

15K Hours

Resolution:

1920*1080pixels

Voltage Supply:

3.3V

Signal Type:

EPD

Packaging Details:

Industrial packing

Highlight:

141PPI PC LCD Module

300CD/M2 PC LCD Module

EPD Signal Laptop LCD Monitor

Product Description

15.6 Inch LCD Display Panel B156HAN02.0

High-performance 15.6-inch laptop LCD display panel with 1920*1080 resolution, 141 PPI density, and 300 cd/m² brightness. Features 30-pin interface and 3.3V operation.

Product Overview

The B156HAN02.0 (Product Code: AUO20ED) is a 15.6-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring an integrated WLED backlight system with LED driver. This panel utilizes reverse interface technology with a matte surface finish, making it ideal for laptop applications.

Key Specifications

Display Size	15.6 inches diagonal
Resolution	1920 * 1080 pixels (Full HD)
Pixel Density	141 PPI
Brightness	300 cd/m²
Interface	30-pin EPD signal
Operating Voltage	3.3V
Backlight	WLED with integrated driver
Surface	Matte finish

Environmental Specifications

Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Maximum Vibration: 1.5G (14.7 m/s²)

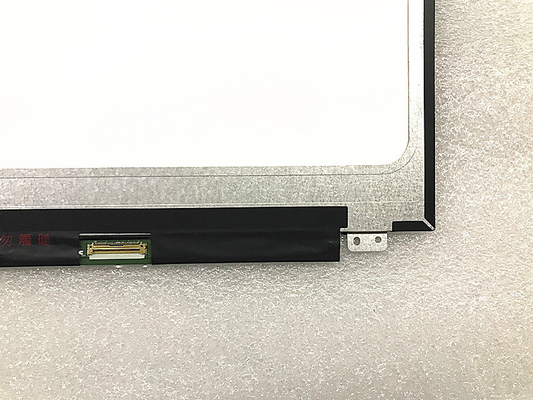

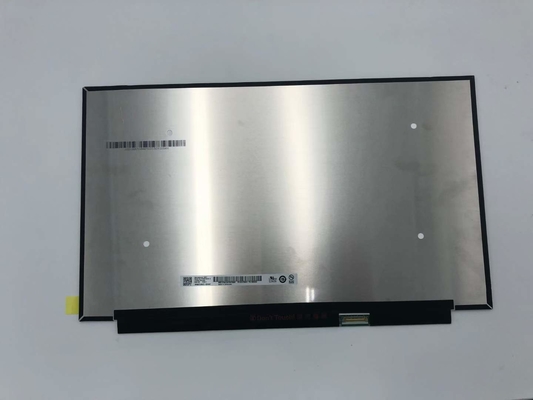

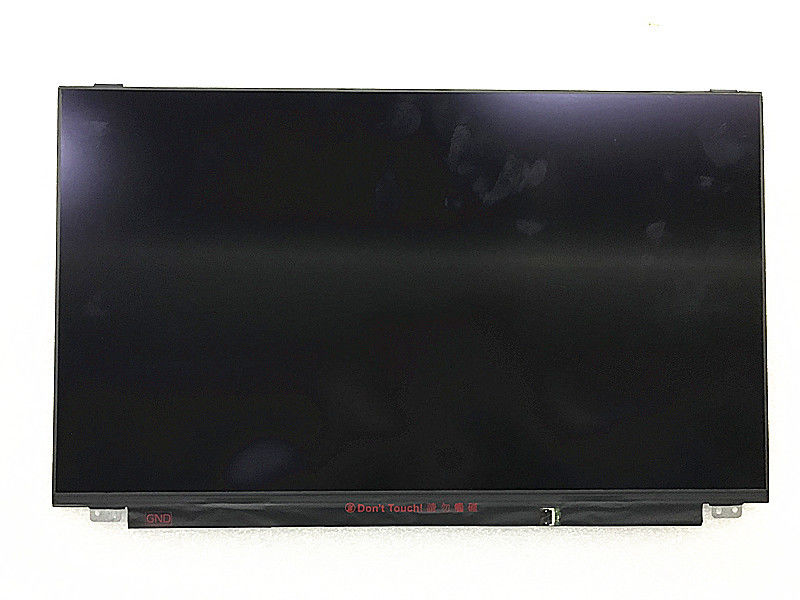

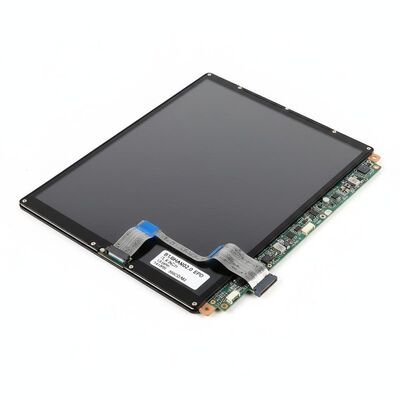

Product Images

Production Information

Mass production began in Q1 2018 and the model remains in active production. Specifications were first recorded on July 1, 2019, with the latest update on April 24, 2020.

For integration of the B156HAN02.0 LCD module into your products, we strongly recommend contacting AU Optronics or their authorized agents for the latest production status and detailed specifications. Product status information is provided for reference only and should not be used as the sole basis for decision-making.
