Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Brightnerss: | 90CD/M2 | Connector: | 39PIN |
| Color: | 262k | Contrast Ratio: | 120:1 |
| Working Life: | 20K Hours | Resolution: | 240*320pixels |
| Voltage Supply: | 2.8V | Signal Type: | Parallel RGB (1 Ch, 6-bit) + SPI |
| High Light: | 2.2 Inch PDA Lcd Module,180PPI PDA Lcd Module,SPI RGB Mobile Phone LCD Module |
||

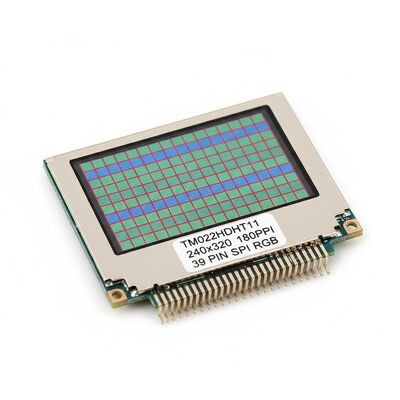

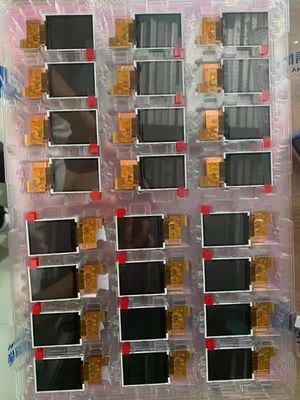

TIANMA 2.2inch mobile phone handheld&PDA lcd module TM022HDHT11 240×320PIXELS 180PPI 39PIN 262K Colors
The TM022HDHT11 is a 2.2 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Portrait type, Transflective, WLED Backlight , R-EVT. Based on its features, Einklcd recommend that this model be applied to Mobile Phone, Handheld & PDA etc.Built-in ILI9341 driver IC. According to the information stored in einklcd this model mass production on Q1, 2016, Now this model is in production. We inputted this model's specification on Mar 9 2016 for the first time, and the latest update on Nov 22 2019. If you want to embed TM022HDHT11 LCM in your future product, einklcd strongly recommend that you should contact with TIANMA or it's agent to learn lateast production and specification detail. The TM022HDHT11 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Mass |
| Refresh Rate |
| TIANMA |
| 2.2 inch |
| 240(RGB)×320 (QVGA) 180PPI |
| 33.84 × 45.12 (H×V) |
| 34.84 × 46.12 (H×V) |
| 90 (Typ.)(cd/m²) |
| 40/45/48/45 (Typ.)(CR≥10) |
| 12 o'clock |
| 262K 50% NTSC |
| TBD |
| 60Hz |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| TM022HDHT11 |
| LCM , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 40.6 × 56.6 × 2.9 (H×V×D) |
| Clear, Hard coating (3H) |
| 120 : 1 (Typ.) (TM) 10:1 (Typ.) (RF) |
| ECB, Normally White, Transflective |
| 35 (Typ.)(Tr+Td) ms |
| 4S1P WLED , 20K hours , No Driver |
| Without |
| Signal Type | Parallel RGB (1 ch, 6-bit) + SPI , 39 pins FPC |
|---|---|
| Voltage Supply | 2.8V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
