AUO 11.6inch 220cd/m2 Desktop lcd Module B116XTN02.2 1366×768 WXGA

AUO 11.6inch Desktop lcd B116XTN02.2 1366(RGB)×768, WXGA, 135PPI 30pin 800:1 3.3V 262K color LVDS 400:1 220cd/m2

The B116XTN02.2 (Product Code: AUO225C) is a 11.6 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcdin the following: WLED Backlight, With LED Driver, Reverse I/F, Glossy , eDP1.2. Based on its features, einklcd recommend that this model be applied to Laptop, Netbook PC etc. According to the information stored in einklcd this model mass production on Q1, 2014 and last shippment on Q2, 2015, Now this model is discontinued. We inputted this model's specification on Nov 4 2015 for the first time, and the latest update on May 19 2020. If you want to embed B116XTN02.2 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The B116XTN02.2 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

• Panel Brand
  AUO
• Panel Model
  B116XTN02.2 (AUO225C)

• Panel Size
  11.6"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  1366(RGB)×768, WXGA, 135PPI
• Pixel Format
  RGB Vertical Stripe

• Display Area
  256.125(W)×144(H) mm
• Bezel Opening
  -

• Outline Size
  278(W)×170.6(H) ×3(D) mm
• Surface
  Glare (Haze 0%), Hard coating (3H)

• Brightness
  220 cd/m² (Typ.)
• Contrast Ratio
  400:1 (Typ.) (TM)

• Viewing Angle
  45/45/15/35 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  8 (Typ.)(Tr+Td)

• Display Colors
  262K 45% NTSC
• Lamp Type
  WLED , 10K hours , With LED Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Shape Style
  Slim (PCBA Flat, T≤3.2mm)
• Application


• Signal Interface

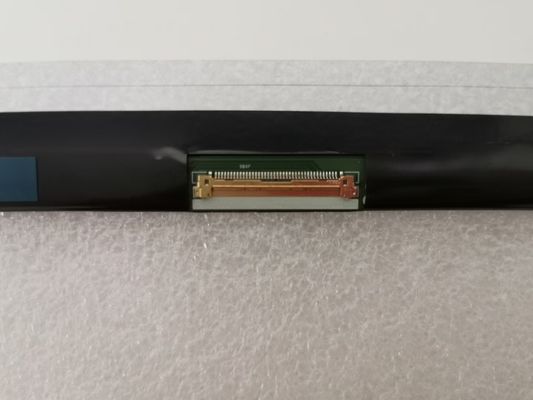

• eDP (1 Lane) , 30 pins Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
