AUO 19" LCD Module with 1440×900 Resolution 250 cd/m² Brightness and 30pin Connector for Desktop Monitor

Name: AUO 19" LCD Module with 1440×900 Resolution 250 cd/m² Brightness and 30pin Connector for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M190PW01 V8
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	M190PW01 V8
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

250CD/M2

Connector:

30P

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

30K Hours

Touch Panel:

Without

Resolution:

1440*900pixels

Packaging Details:

Industrial packing

Highlight:

250cd/m2 Desktop Lcd Monitor

1440×900 Desktop Lcd Monitor

M190PW01 V8

Product Description

AUO 19" 1440*900 89PPI 250cd/m² Desktop LCD Monitor M190PW01 V8

AUO 19-inch desktop monitor LCD panel M190PW01 V8 featuring 1440(RGB)*900 WXGA+ resolution, 89PPI pixel density, and 30-pin interface with 250 cd/m² brightness.

Technical Specifications

Panel Brand	AUO
Panel Model	M190PW01 V8
Panel Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1440(RGB)*900, WXGA+, 89PPI
Pixel Format	RGB Vertical Stripe
Display Area	408.24(W)*255.15(H) mm
Bezel Opening	412.24(W)*259.15(H) mm
Outline Size	428(W)278(H)10.8(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	3.6/1.4 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	13S4P WLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.45Kgs (Typ.)
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Product Overview

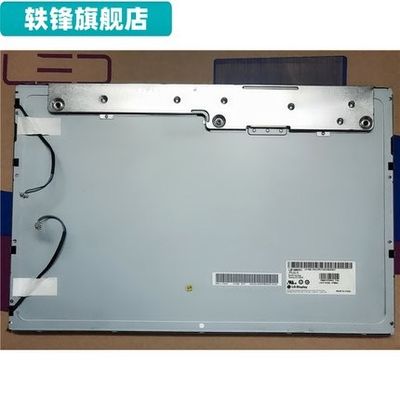

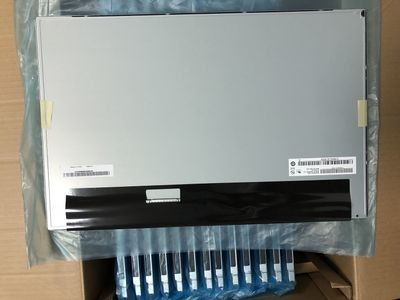

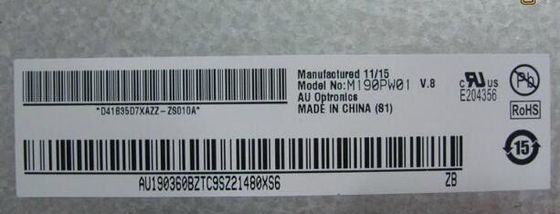

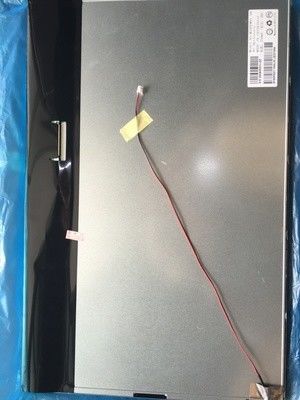

The M190PW01 V8 (Alias: M190PW01 V.8) is a 19.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integral WLED backlight system without backlight driver or touch screen. This panel operates within a temperature range of 0~50°C and stores safely at -20~60°C.

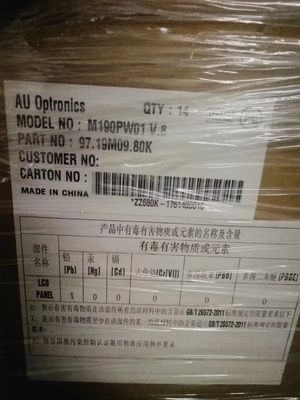

Key features include WLED backlight, upside interface, matte surface finish, and TCO 5.1 compliance (PART NO.: 97.19M09.800). This model is recommended for desktop monitor applications.

According to production records, this model entered mass production in Q1 2011 with final shipments in Q1 2019. The M190PW01 V8 is now discontinued. Specification data was first recorded on April 10, 2013, with the latest update on August 6, 2019.

For integration of M190PW01 V8 LCM into future products, we strongly recommend contacting AUO or their authorized agents for the latest production and specification details. The production status information provided is for reference only and should not be used as the sole basis for decision-making.
