| Brand Name: | BOE |
| Model Number: | MV185WHB-N20 |
| MOQ: | 10pcs |
| Price: | negotiation |
| Packaging Details: | industrial package |
| Payment Terms: | Western Union, MoneyGram, T/T |

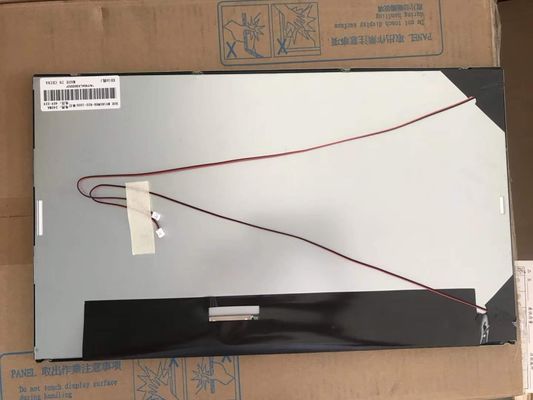

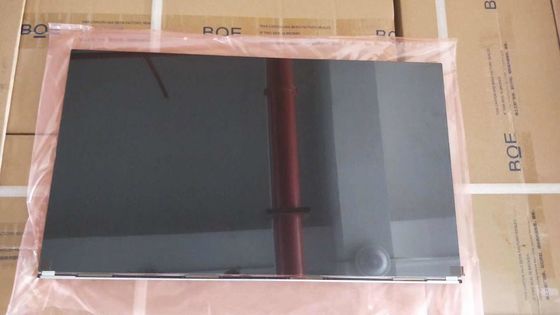

BOE 18.5INCH LCD Panel MV185WHB-N20 1366*768pixels 84PPI 30PIN for desktop minitor brand new
| Panel Brand | BOE | Panel Model | MV185WHB-N20 |
|---|---|---|---|
| Panel Size | 18.5" | Panel Type | a-Si TFT-LCD , CELL |
| Resolution | 1366(RGB)×768, WXGA, 84PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm | Bezel Opening | - |
| Outline Size | 422.2(W)×244.1(H) ×1.32(D) mm | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 0 cd/m² | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | HADS, Normally Black, Transmissive |
| Best View on | Symmetry | Response Time | 14 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm | Transmissivity | 5.2% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72% NTSC | Lamp Type | No B/L |
| Frequency | 60Hz | Touch Screen | Without |
| Panel Weight | 295.6g (Typ.) | Application | |

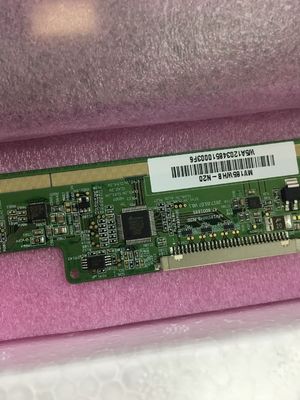

| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector | ||
| Input Voltage | 5.0V (Typ.) | ||
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||
The MV185WHB-N20 is a 18.5 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Reverse I/F, Matte . Based on its features,einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q3, 2017, Now this model is in production. We inputted this model's specification on May 10 2017 for the first time, and the latest update on Apr 22 2019. If you want to embed MV185WHB-N20 CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The MV185WHB-N20 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
