AUO M270DTN01.3 27 Inch LCD Display Panel with 2560x1440 Pixels 350 cd/m² Brightness and 130 Pin Connector

Name: AUO M270DTN01.3 27 Inch LCD Display Panel with 2560x1440 Pixels 350 cd/m² Brightness and 130 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M270DTN01.3
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M270DTN01.3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	Western Union,MoneyGram,T/T
Supply Ability:	20000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FCC,ROSH,UL,REACH

Material:

Glass

Size:

27inch

Constraction:

1000:1

Pixels:

2560*1440

Contactor:

130pin

Working Life:

30k Hours

Display Colors:

16.7M

Weight:

2.39kg

Packaging Details:

industrial package

Highlight:

350CD/M2 Laptop Lcd Display

M270DTN01.3

Product Description

M270DTN01.3 27" Quad-HD LCD Display Panel

2560*1440 resolution, 130-pin AUO 27" laptop LCD screen with 350 cd/m² brightness

Panel Specifications

Specification	Details
Panel Brand	AUO
Panel Size	27.0"
Resolution	2560(RGB)*1440 (Quad-HD, 108 PPI)
Display Area	596.736(W)*335.664(H) mm
Outline Size	608.8(W)354.66(H)15.08(D) mm
Brightness	350 cd/m² (Typical)
Viewing Angle	85/85/80/80 (Typical, CR≥10)
Display Colors	16.7M, 98% sRGB
Refresh Rate	144Hz
Weight	2.39 kg (Typical)

Technical Details

Parameter	Specification
Panel Model	M270DTN01.3
Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Surface Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typical)
Display Mode	TN, Normally White, Transmissive
Response Time	3.5/1.5 (Typical)(Tr/Td)
Backlight System	18S4P WLED, 30K hours, Without Driver
Touch Screen	Without

Interface & Environmental Specifications

Signal Interface	LVDS (8 ch, 8-bit), 130 pins Connector
Input Voltage	12.0V (Typical)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

AUO 27-inch Desktop Monitor Gaming LCD

M270DTN01.3 features 2560*1440 pixels, 108 PPI, 130-pin connector, 350 cd/m² brightness - original brand new

Product Overview

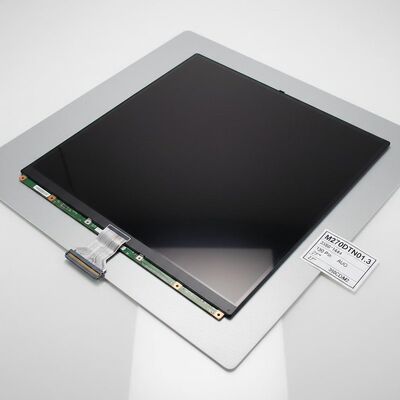

AU Optronics Corp. M270DTN01.3 is a 27.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This panel operates within 0~50°C temperature range and withstands vibrations up to 1.5G (14.7 m/s²).

Key Features

sRGB color gamut coverage
3-side borderless design
144Hz refresh rate for smooth gaming
3D display capability
WLED backlight technology
Matte anti-glare surface
G-Sync compatibility
TCO 6.0 compliance

Recommended Applications

Ideal for desktop monitors and gaming applications where high refresh rates and Quad-HD resolution are essential.

Production Status: Mass production began Q4 2014. Current production status should be verified directly with AUO or authorized distributors for the latest specifications and availability.
