ED052TC2 5.2 Inch E Ink Display Panel with 540×960 Pixels and 213PPI for E-Book Reader Repair

Name: ED052TC2 5.2 Inch E Ink Display Panel with 540×960 Pixels and 213PPI for E-Book Reader Repair
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: ED052TC2
Price: 18 USD
Availability: InStock

Brand Name:	PVI
Model Number:	ED052TC2
MOQ:	10pcs
Price:	18
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	20000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FCC,ROSH,UL,REACH

Color:

Black And White

Material:

Glass

Packaging Details:

industrial package

Highlight:

5.2 Inch E Ink Panel

540*960 E Ink LCD Screen

Product Description

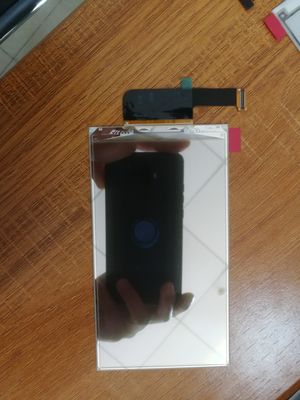

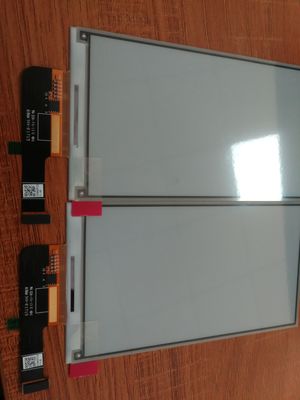

ED052TC2 540*960 213PPI 5.2 Inch EDP E Ink Display Panel

This E Ink display panel features a 5.2-inch diagonal EPD display without backlight or touch screen functionality. Designed for optimal performance in handheld devices and e-book readers, this reflective display offers excellent readability with 213 PPI resolution.

Product Overview

The ED052TC2 from E Ink Holdings Inc. is a 5.2-inch EPD display panel that operates without backlighting. This reflective display is engineered for applications requiring low power consumption and high visibility in various lighting conditions.

Key Features

5.2-inch E Ink display with 540*960 qHD resolution
213 PPI pixel density for sharp text and images
Reflective operating mode for natural reading experience
No backlight required - energy efficient operation
Grayscale display support
Lightweight design at 11.3±1.2g
85Hz frame rate for smooth display performance

Technical Specifications

Brand	E Ink
Model	ED052TC2
Diagonal Size	5.2 inch
Display Type	EPD (Electronic Paper Display)
Resolution	540*960 pixels (qHD)
Pixel Density	213 PPI
Active Area	64.53(H)*114.24(V) mm
Outline Dimensions	69.23(H)*124.59(V) mm
Contrast Ratio	16:1 (Typical)
Interface	Parallel Data (8-bit), 40-pin connector
Touch Panel	Without touch screen
Weight	11.3±1.2g
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C

Application Areas

Ideal for handheld devices, PDAs, e-book readers, and other applications requiring low-power, high-visibility displays with excellent readability in various lighting conditions.

Important Note: This model entered mass production in Q4 2016 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting E Ink or their authorized agents directly. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
