| Brand Name: | samsung |
| Model Number: | LTM238HL01 |
| MOQ: | 10pcs |
| Price: | Negotiation |

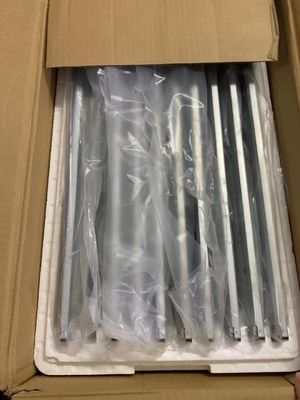

| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| SAMSUNG |
| 23.8" |
| 1920(RGB)×1080 , FHD |
| 527.04(W)×296.46(H) mm |
| 534.64(W)×312.76(H) ×12.7(D) mm |
| 250 cd/m² (Typ.) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 72% NTSC |
| 60Hz |
| 2.34Kgs (Max.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| LTM238HL01 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| - |
| Antiglare, Hard coating (3H) |
| 1000:1 (Typ.) (TM) |
| PLS, Normally Black, Transmissive |
| 14 (Typ.)(G to G) |
| 4 strings WLED , 40K hours , Without Driver |
| Without |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
|---|---|
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

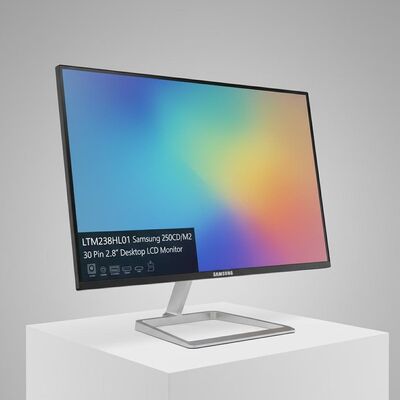

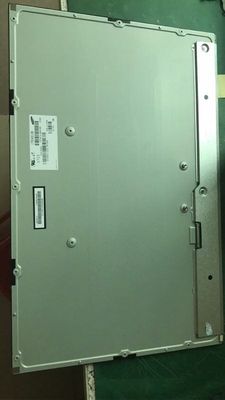

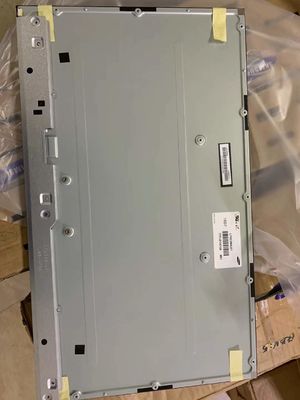

Samsung Display Co., Ltd. (hereafter called SAMSUNG) LTM238HL01 is a 23.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: 3-side boderless, WLED Backlight, Matte , 3-side borderless, TCO 6.0 Compliance. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q1, 2015, Now this model is discontinued. We inputted this model's specification on Apr 14 2015 for the first time, and the latest update on Jan 18 2020. If you want to embed LTM238HL01 LCM in your future product, einklcd strongly recommend that you should contact with SAMSUNG or it's distributor to learn lateast production and specification detail. The LTM238HL01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
