| Brand Name: | BOE |
| Model Number: | MV270FHM-N20 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
27 InchBOE Lcd Display Panel Screen , MV270FHM-N20 1920 * 1080 Pixels Lcd Digital Display 30PIN
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Mass |
| Refresh Rate |
| BOE |
| 27.0 inch |
| 1920(RGB)×1080 (FHD) |
| 597.888 × 336.312 (H×V) |
| 601.9 × 340.4 (H×V) |
| 300 (Typ.)(cd/m²) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 99% sRGB |
| 3.49Kgs |
| 60Hz |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| MV270FHM-N20 |
| LCM , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 611.5 × 355.8 × 13.5 (H×V×D) |
| Antiglare (Haze 25%), Hard coating (3H) |
| 1000 : 1 (Typ.) (TM) |
| ADS, Normally Black, Transmissive |
| 14 (Typ.)(G to G) ms |
| 18S4P WLED , 30K hours , No Driver |
| Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector , 30 pins |
|---|---|
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

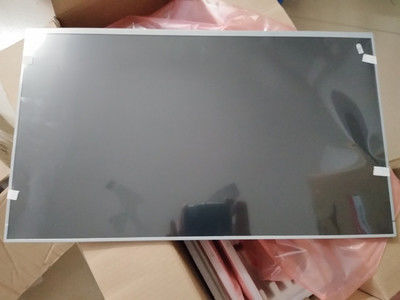

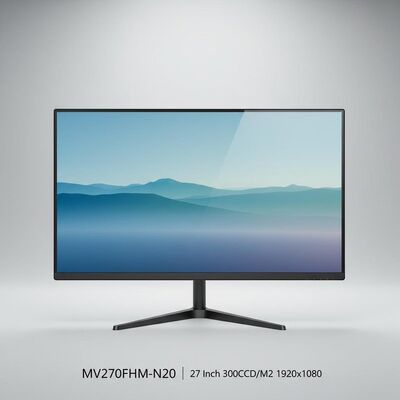

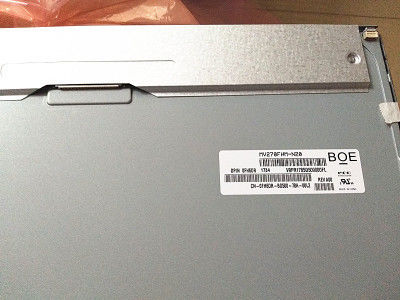

BOE Technology Group Co., Ltd. (hereafter called BOE) MV270FHM-N20 is a 27.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by EINKLCD in the following: sRGB, WLED Backlight, Reverse I/F, Matte , SNB(L/R Bezel 4.8mm). Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Einklcd this model mass production on Q1, 2016, Now this model is in production. We inputted this model's specification on May 11 2016 for the first time, and the latest update on Sep 25 2019. If you want to embed MV270FHM-N20 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The MV270FHM-N20 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
